MIL-DTL-38999/22H
SHELL SIZES 17, 19, 21, 23 AND 25
Shell
A
B
size
dia
dia
17
26.01/25.73 (1.024/1.013)
23.85/23.64 (.939/.930)
19
28.63/28.40 (1.127/1.118)
26.55/26.31 (1.045/1.036)
21
31.85/31.57 (1.254/1.243)
29.70/29.49 (1.169/1.161)
23
35.03/34.75 (1.379/1.368)
32.85/32.66 (1.293/1.286)
25
38.20/37.92 (1.504/1.493)
36.00/35.84 (1.417/1.411)

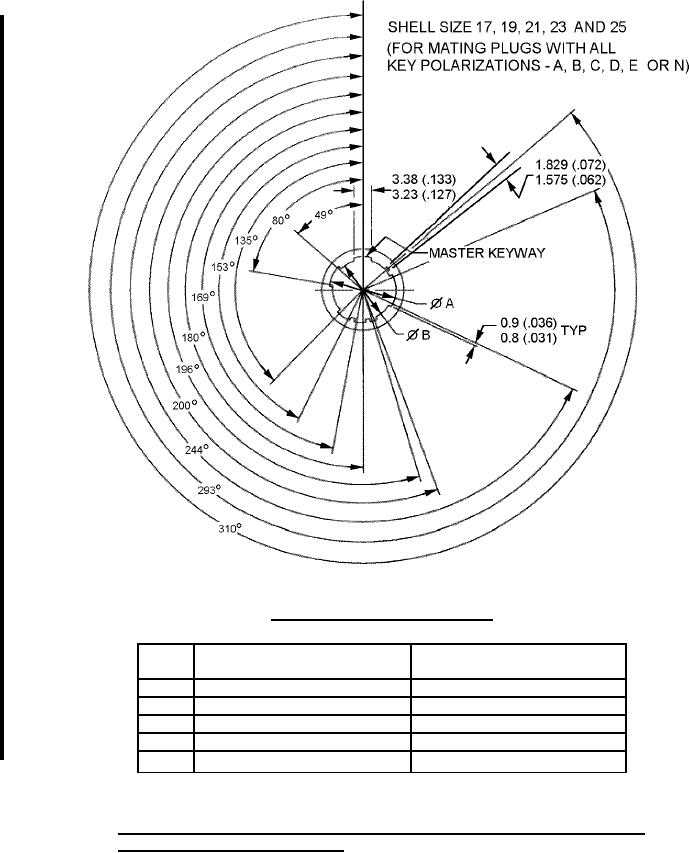

FIGURE 4. Receptacle, keyway arrangement, classes F, G, J, K, M, P, R, S, T, W, X and Z
(shell sizes 17, 19, 21, 23 and 25).
7
