INCH-POUND
MIL-DTL-55302/31L
20 July 2007
SUPERSEDING
MIL-DTL-55302/31K
9 January 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
KEYING ACCESSORIES
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.

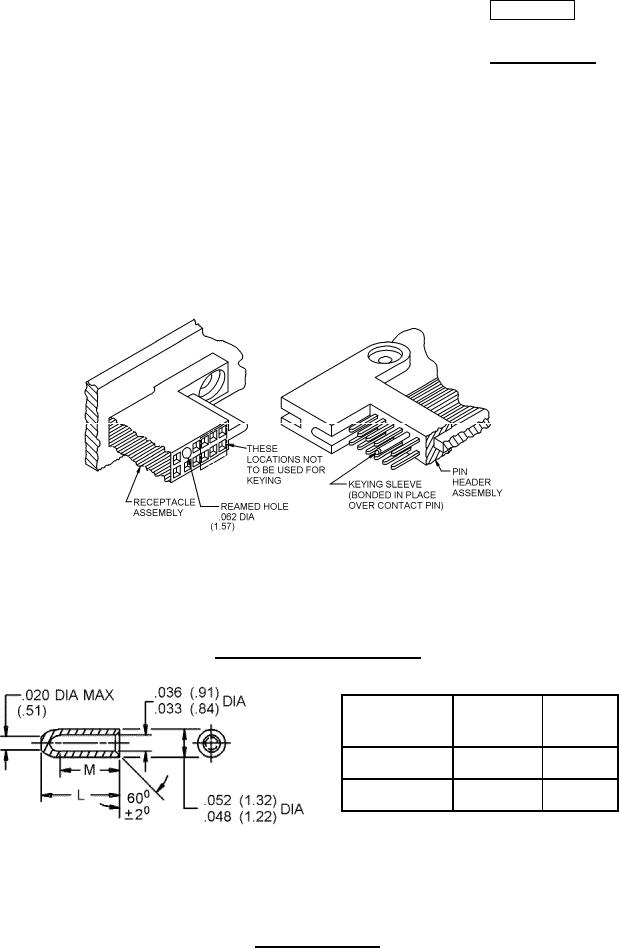

FIGURE 1. Installation of keying sleeve, type I.
Key Part or
Identifying
L
M
Number (PIN)
M55302/31-01
.305
.240 min
(7.75)
(6.10)
M55302/31-02
.250
.225 min
(6.35)
(5.72)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.
FIGURE 2. Keying sleeve, type I.
