MIL-DTL-55302/31L
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).

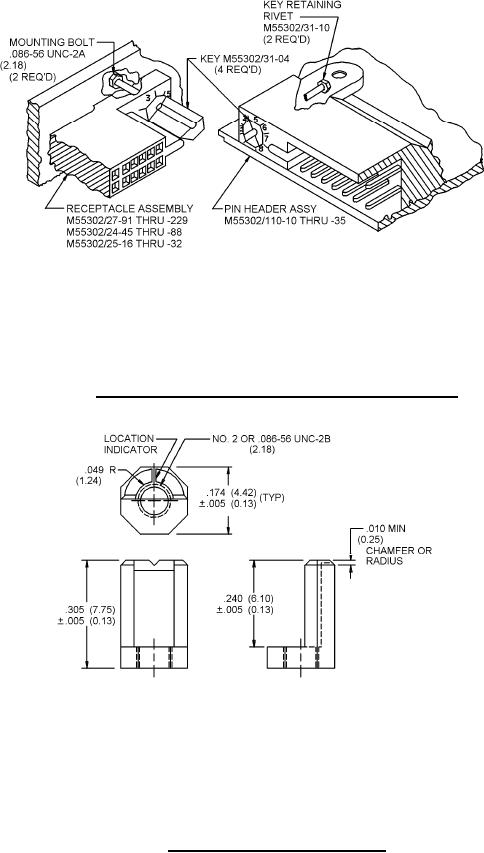

FIGURE 5. Installation of external key (position 6 shown), types II and III.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.
FIGURE 6. External key, M55302/31-04, type III.
3
