MIL-DTL-55302/31L
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.

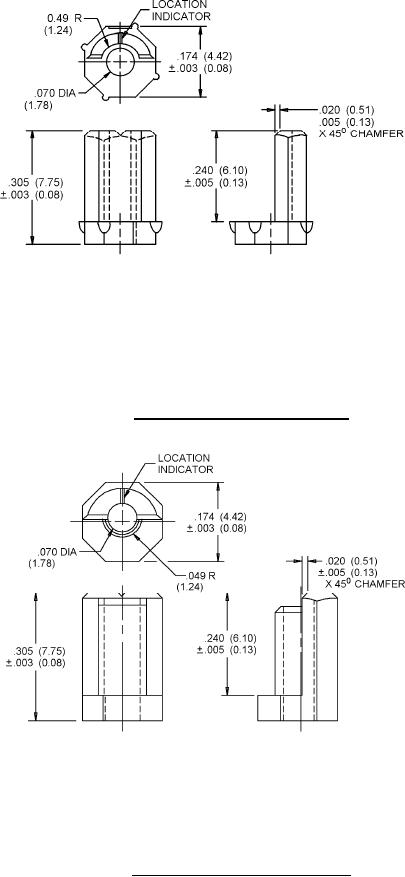

FIGURE 11. External key M55302/31-07, type IV.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.
FIGURE 12. External key, M55302/31-08, type IV.
6
