MIL-DTL-55302/31L
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.
5. Configurations A and B represent a difference in manufacturers keying hardware design and should be installed
in the appropriate connector manufacturer's housing.

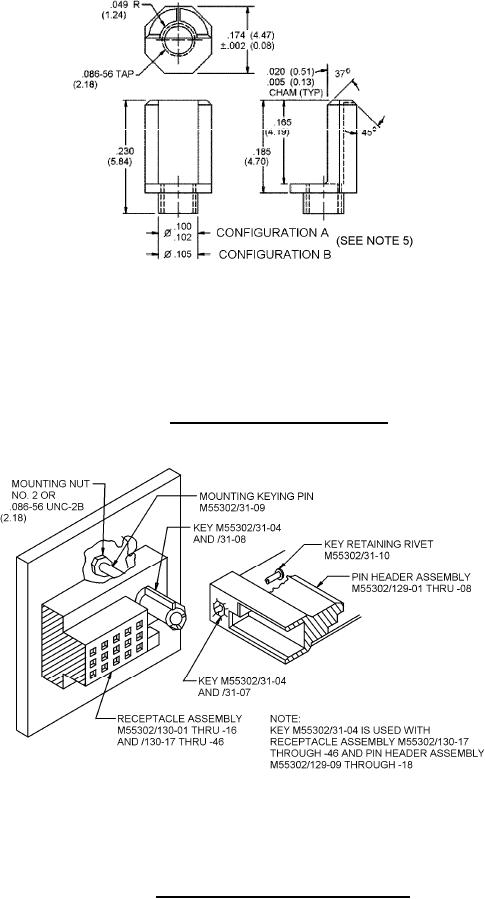

FIGURE 9. External key, M55302/31-06, type III.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
FIGURE 10. Installation of external key, types III and IV.
