MIL-DTL-55302/31L
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).

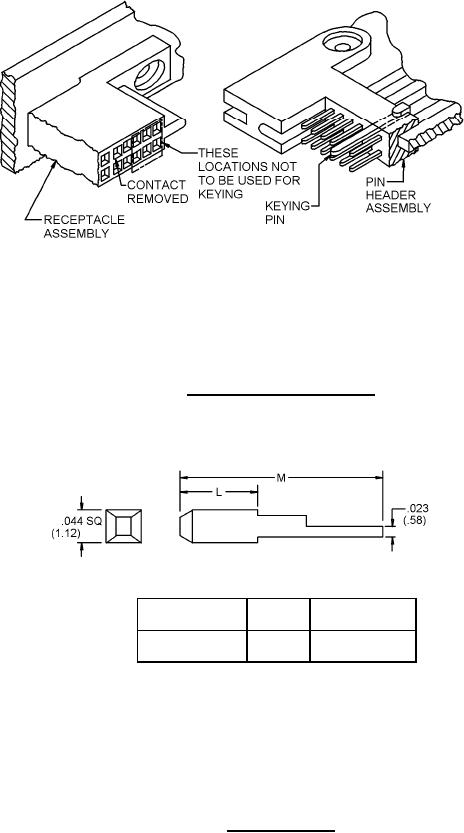

FIGURE 3. Installation of keying pin, type II.
Key PIN
L
M
.227
.700 ±.015
M55302/31-03
(5.77)
(17.78) ±(.38)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Metric equivalents are in parenthesis.
FIGURE 4. Keying pin, type II.
2
