MIL-DTL-83517-11 Connector,Receptacles, Electrical, Coaxial, Radio Frequency, Strip Or Microstrip Transmission Line, Series Sma \(Pin Contact, Flange Mounted\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18

MIL-DTL-83517/11A

Inches

.001

.03

.004

.10

.005

.13

.006

.15

.010

.25

.021

.53

.0355

.901

.0370

.940

.065

1.65

.102

2.59

.115

2.92

.130

3.30

.140

3.56

.150

3.81

.2405

6.11

.281

7.14

.390

9.91

.4810

12.22

.528

13.41

.625

15.88

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. All undimensioned pictorial configurations are for reference purposes only.

4. Number two screws are suggested for mounting.

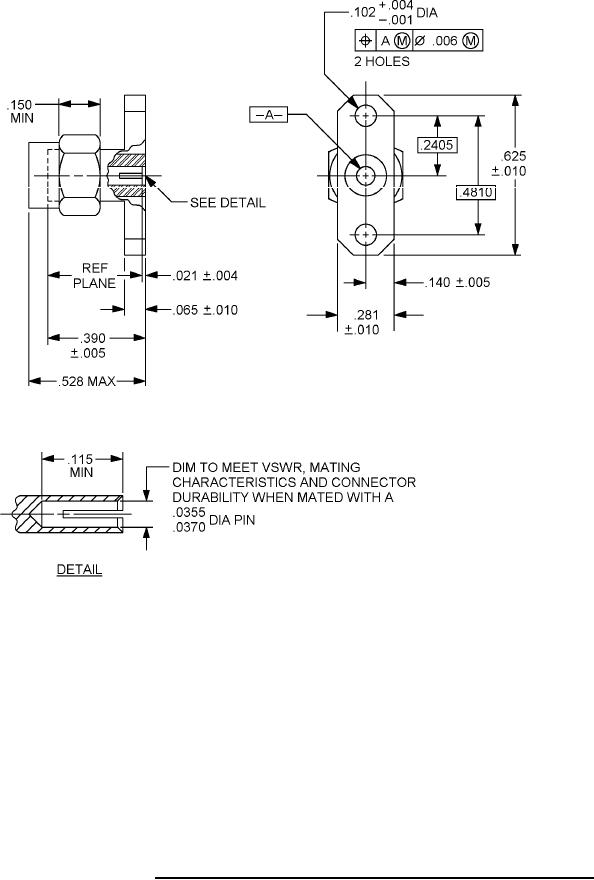

FIGURE 2. Series SMA, pin contact, 2 hole, (.281) flange mounted receptacle.
