MIL-DTL-83517/11A
Inches
mm
.001
.03
.002
.05
.005
.13
"A" dim.
.010
.25
.015
.38
.020 ±.002
.017
.43
.050 ±.002
.020
.51
.0355
.90
.0370
.94
.050
1.27
.073
1.85
.100
2.54
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. All undimensioned pictorial configurations are for reference purposes only.
4. Number two screws are suggested for mounting.

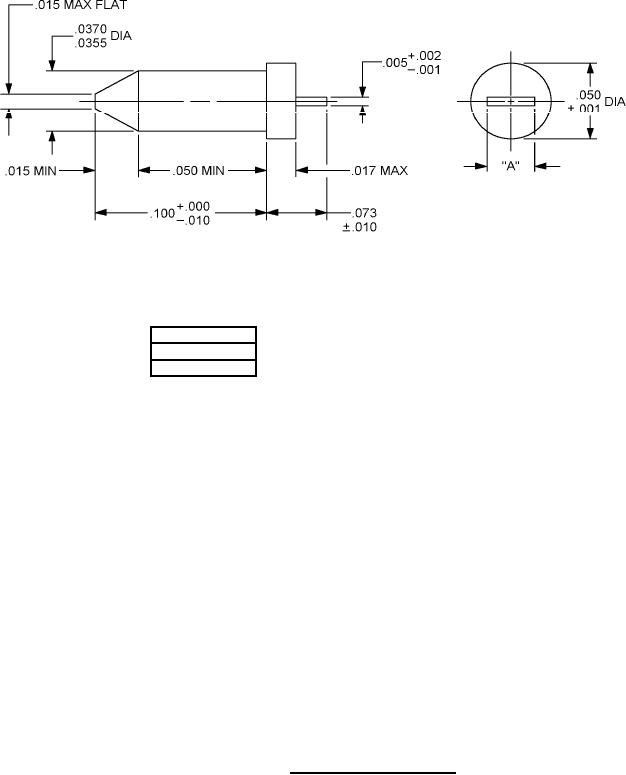

FIGURE 6. Transition pin (.100 inch).
