MIL-DTL-83517/11A

Inches

.001

.03

.150

3.81

.004

.10

.170

4.32

.005

.13

.2405

6.109

.006

.15

.260

6.60

.010

.25

.340

8.64

.021

.53

.390

9.91

.0355

.902

.4810

12.217

.0370

.940

.510

12.95

.065

1.65

.625

15.88

.102

2.59

.115

2.95

.130

3.30

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. All undimensioned pictorial configurations are for reference purposes only.

4. Number two screws are suggested for mounting.

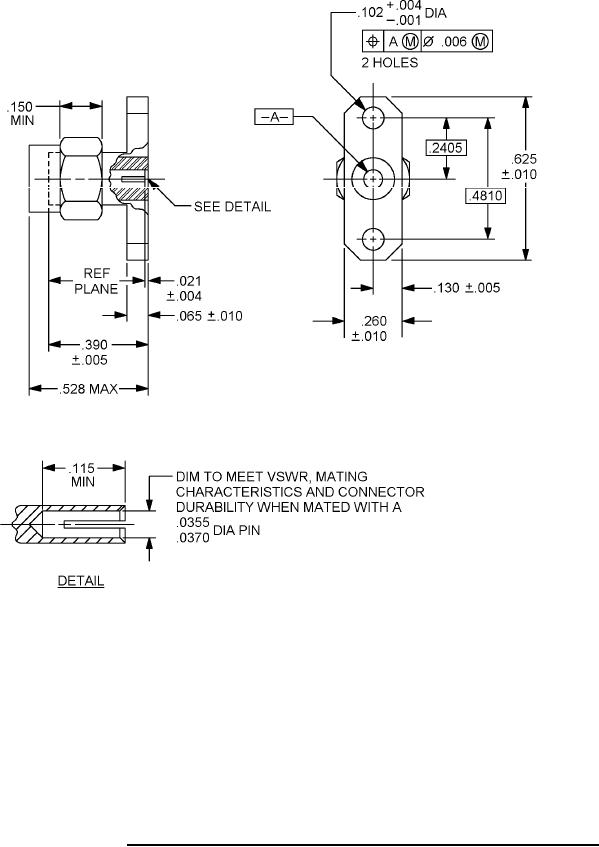

FIGURE 4. Series SMA (.115 inch) pin contact, (4 hole) flange mounted receptacle.
