MIL-DTL-83517/11A
Inches
mm
.015
.38

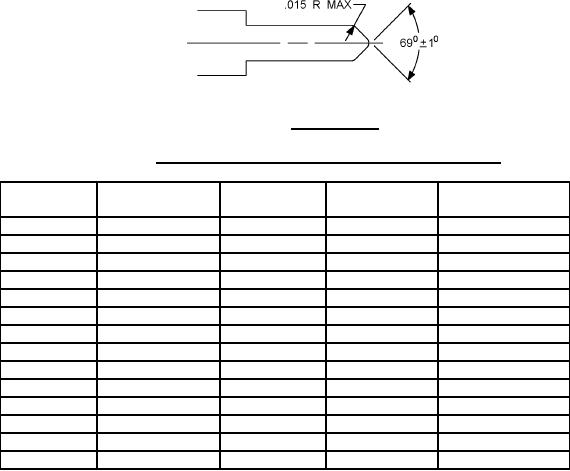

FIGURE 9. Test pin data.
TABLE I. Part or Identifying Number (PIN) and characteristics.
PIN
Basic connector
Transition pin
Rear dielectric
Remarks
M83517/11-
figure no.
figure no.
figure no.
31001
1
-
-
-
31002
2
-
-
-
31003
3
-
-
-
31004
4
-
-
-
31005
1
5
-
.020 wide tab
31006
1
5
-
.050 wide tab
31007
2
6
-
.020 wide tab
31008
2
6
-
.050 wide tab
31009
2
7
8
.050 dia. terminal
31010
3
5
-
.020 wide tab
31011
3
5
-
.050 wide tab
31012
4
6
-
.020 wide tab
31013
4
6
-
.050 wide tab
31014
4
7
8
.050 dia. terminal
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum, in accordance with test procedure EIA-364-21.
Center contact retention:
Axial force: 6 pounds minimum.
Torque: Not applicable.
Dielectric withstanding voltage: In accordance with test procedure EIA-364-20, test condition I.
Test voltage 1,000 V rms.
Corrosion: In accordance with test procedure EIA-364-26, test condition B.
