MIL-PRF-39012-38 Connectors, Receptacle, Electrical, Coaxial, Radio Frequency \(Series Sc \(Cabled\), Socket Contact, Flange Mounted, Rear Mounted, Class 2\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12

MIL-PRF-39012/38J

Inches

.005

0.13

.190

4.82

.010

0.25

.200

5.08

.032

0.81

.492

12.49

.078

1.98

.498

12.65

.103

2.61

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. All undimensioned pictorial configurations are for reference purposes only.

4. Chamfer is optional. If chamfer is used, put chamfer on a 30� maximum.

5. Dimension to meet connector performance requirements.

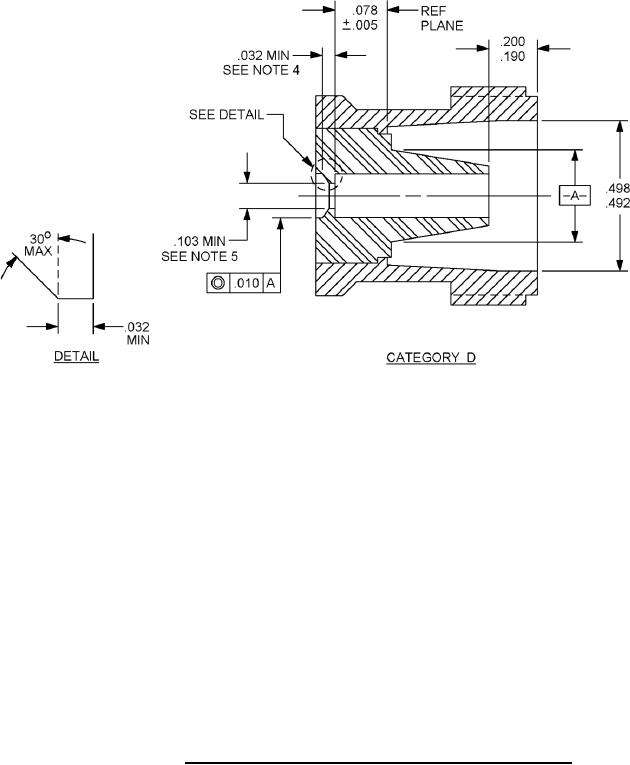

FIGURE 2. Mating dimensions for socket termination, category D only.
