MIL-PRF-39012/39H
Inches
mm
.177
4.50
.197
5.00
.396
10.06
.416
10.57
.197
.490
12.45
.177
.510
12.95
.687
17.45
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

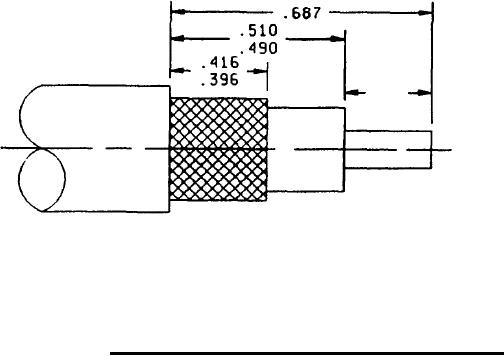

FIGURE 3. Cable stripping dimensions for field replaceable connectors.
ENGINEERING DATA:
Nominal impedance: 50 ohms
Frequency range: 0 to 11,000 MHz
Voltage rating
1,000 volts rms maximum working voltage at sea level.
250 volts rms maximum at 70,000 feet.
Temperature rating: -65° to +165°C.
REQUIREMENTS:
Design and configuration: See figure 1.
Force to engage and disengage:
Longitudinal force: Not applicable.
Torque: 6 inch-pounds maximum.
Coupling proof torque: 15 inch-pounds.
Inspection conditions: Coupling torque: 6-10 inch pounds.
Mating characteristics: See MIL-STD-348 for dimensions.
Outer contact:
Test ring ID: .411 maximum, 16 microinch finish.
Insertion force: 15 pounds maximum when inserted a minimum of .125.
Contacts with slotted members: Shall contact a .419 minimum diameter ring within .031 of their tip
ends.
Hermetic seal: Not applicable.
6
