MIL-PRF-39012/80F
TABLE I. Dash numbers and dimensions Continued.
Cable to be used when performing tests requiring cable. All cable dash numbers in accordance with
*
MIL-DTL-17 specification sheets accommodate this connector.
1/
The RG cables are specified with the basic number. The latest version of each cable shall be applicable.
2/
These connectors have captivated center contacts.
3/ Coupling nuts shall be corrosion-resistant steel with a passivated finish in accordance with
SAE-AMS2700, type 2. (Applies to "-3XXX" series connectors only).
4/ No safety wire holes.
5/ Kit number - Omni Spectra T-200, Amphenol 901-2500, or equivalent.
6/ For logistics purposes, only connectors with safety wire holes will be stocked.
7/ All corrosion-resistant steel-bodied connectors shall be gold plated in accordance with ASTM B488,
type 3 grade C, class 1.27, at least in the area of solder attachment.
8/ Inactive for new design. Not for Air Force or Navy use.
9/ This dimension is furnished in manufacturers' assembly instructions.
10/ Gasket material shall be in accordance with SAE-AMS7276, SAE-AMS7259, SAE-AMS3216 and
SAE-AMS3218.
11/ The locators required shall be indicated in the assembly instructions.
12/ The C and D dimensions before crimping determines the closeness of a bend in the cable to the rear
of the connector.
13/ Not for Army use. For OEM use only.
Cable *
Dimension A
Min
Max
M17/130-RG402
.080
.090
(2.03 mm) (2.29 mm)
M17/133-RG405
.065
.075
(1.65 mm) (1.91 mm)
* Dimensions apply to all cables on
the below specification sheets.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Tapering of center conductor is optional.
4. All undimensioned pictorial configurations are for references purposes only.

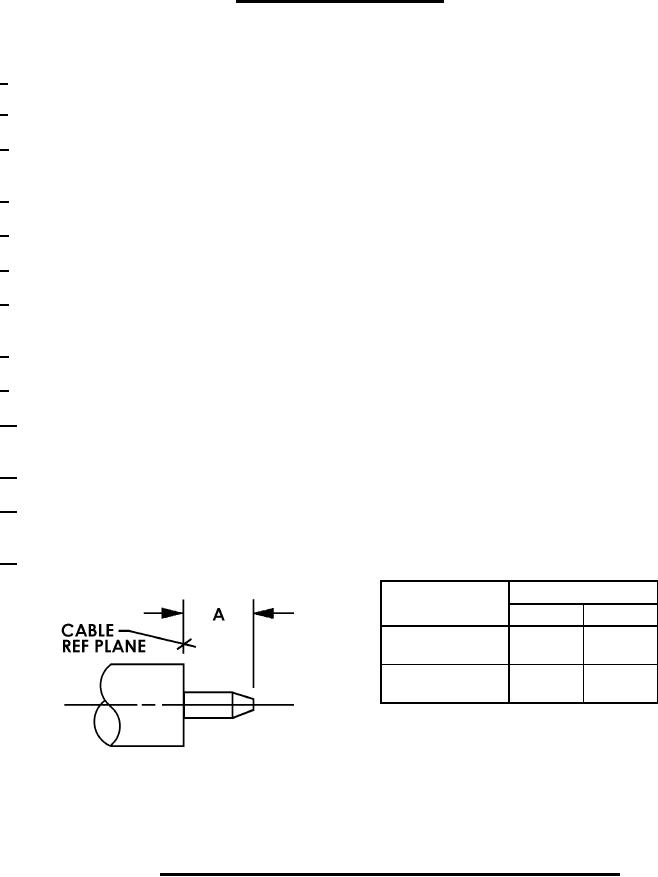

FIGURE 2. Cable stripping dimensions for category E and category F connectors.
4
