MIL-PRF-39012/83G
Dimension "A"
Cable *
Minimum
Maximum
M17/130-RG402
.080
.090
(2.03 mm)
(2.29 mm)
M17/133-RG405
.065
.075
(1.65 mm)
(1.91 mm)
* Dimensions apply to all cables on the below
specification sheets.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tapering of center conductor is optional.

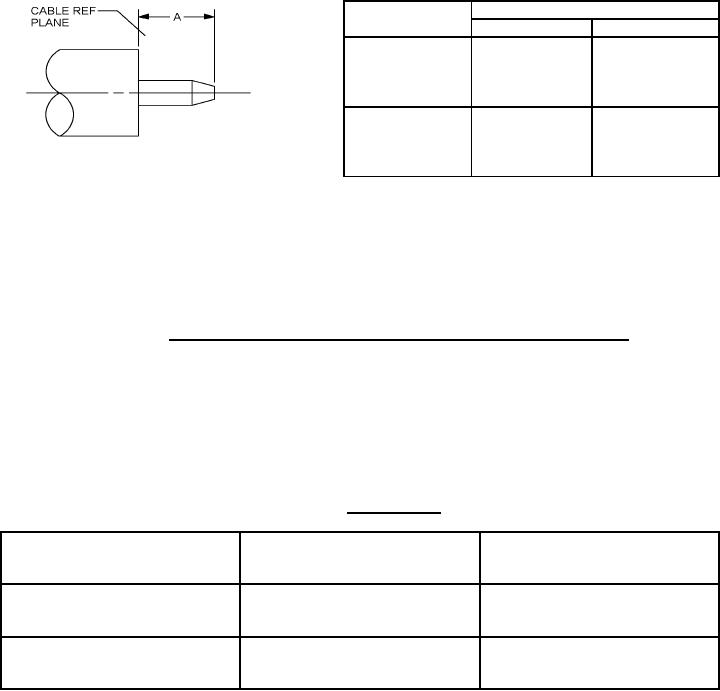

FIGURE 2. Cable stripping dimensions for category E and category F connectors.
ENGINEERING DATA:
Nominal impedance: 50 ohms.
Frequency range: 0 to 18 GHz.
Voltage rating: The voltage rating shall be specified in table II.
TABLE II. Voltage rating.
Cables
Voltage max. (sea level)
Voltage max. at 70,000 ft.
V rms
(4.437 kPa)
V rms
M17/133-RG405 *
335
85
M17/130-RG402 *
500
125
* These voltages apply to all cable PINs on these specification sheets even if not listed.
Temperature rating: -65°C to +165°C.
Category F: Connectors using semirigid cables with standard stripping dimensions and using standard
military assembly tools. The method of assembly of the connector to the cable shall be solderless.
5
