MIL-PRF-39012/83G
Inches
mm
.015
0.38
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

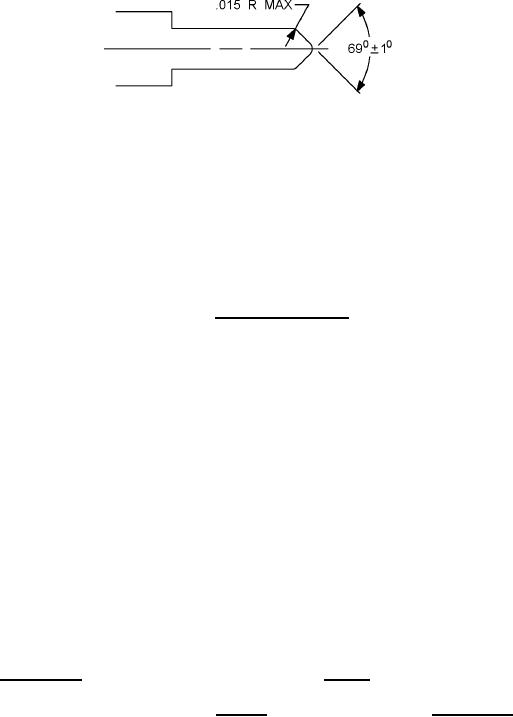

FIGURE 3. Test pin dimensions.
Hermetic seal: Not applicable.
Leakage (pressurized connectors): Not applicable.
Insulation resistance: In accordance with MIL-STD-202, method 302, test condition B, 5,000 megohms
minimum.
Center contact retention:
Axial force: 6 pounds (26.69 N), minimum axial force. Applicable to captivated center contacts only.
Radial torque: Not applicable.
Corrosion (salt spray): In accordance with MIL-STD-202 method 101, test condition B.
Voltage standing wave ratio (VSWR): From 500 MHz to 12.4 GHz, or approximately 80 percent of the
upper cutoff frequency of the cable, whichever is lower.
Cable group
VSWR
Captive
Non-captive
M17/133-RG405*
1.07 +0.01F (F in GHz)
1.07 +0.008F (F in GHz)
M17/130-RG402*
1.05 +0.01F (F in GHz)
1.05 +0.008F (F in GHz)
* VSWR values apply to all cable PINs on these specification sheets even if not listed.
