MIL-STD-1130 Connections, Electrical, Solderless WrappedThis standard establishes the requirements to produce mechanically and electrically stable, solderless wrapped, electrical connections made with single, solid, round wire and appropriately designed wrapposts terminals.This standard includes:a. Classes and requirements for solderless wrapped connections. b. Description and requirements for the wire used in making the solderless wrapped connections. c. Description and requirements for the wrappost used in making the solderless wrapped connections.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-STD-1130C

5.3  Solderless wrapped connection.

5.3.1  Process.  Solderless wrapped connections shall be made with either hand or automatic wrapping tools capable of wrapping connections which conform to all requirements of this standard.  The sequence of operations for making wrapped connections shall be as follows (see figure 4).

a.    Verify that the tool meets the requirements specified in 5.4. b.    Insert the stripped wire into the feed slot (hand tools only).

c.        Bend insulated or bare wire into notch in tool to anchor (hand tools only). d.    Place tool (large hole) over the wrappost.

e.    Rotate the tool spindle around the wrappost. f.        Remove tool from wrappost.

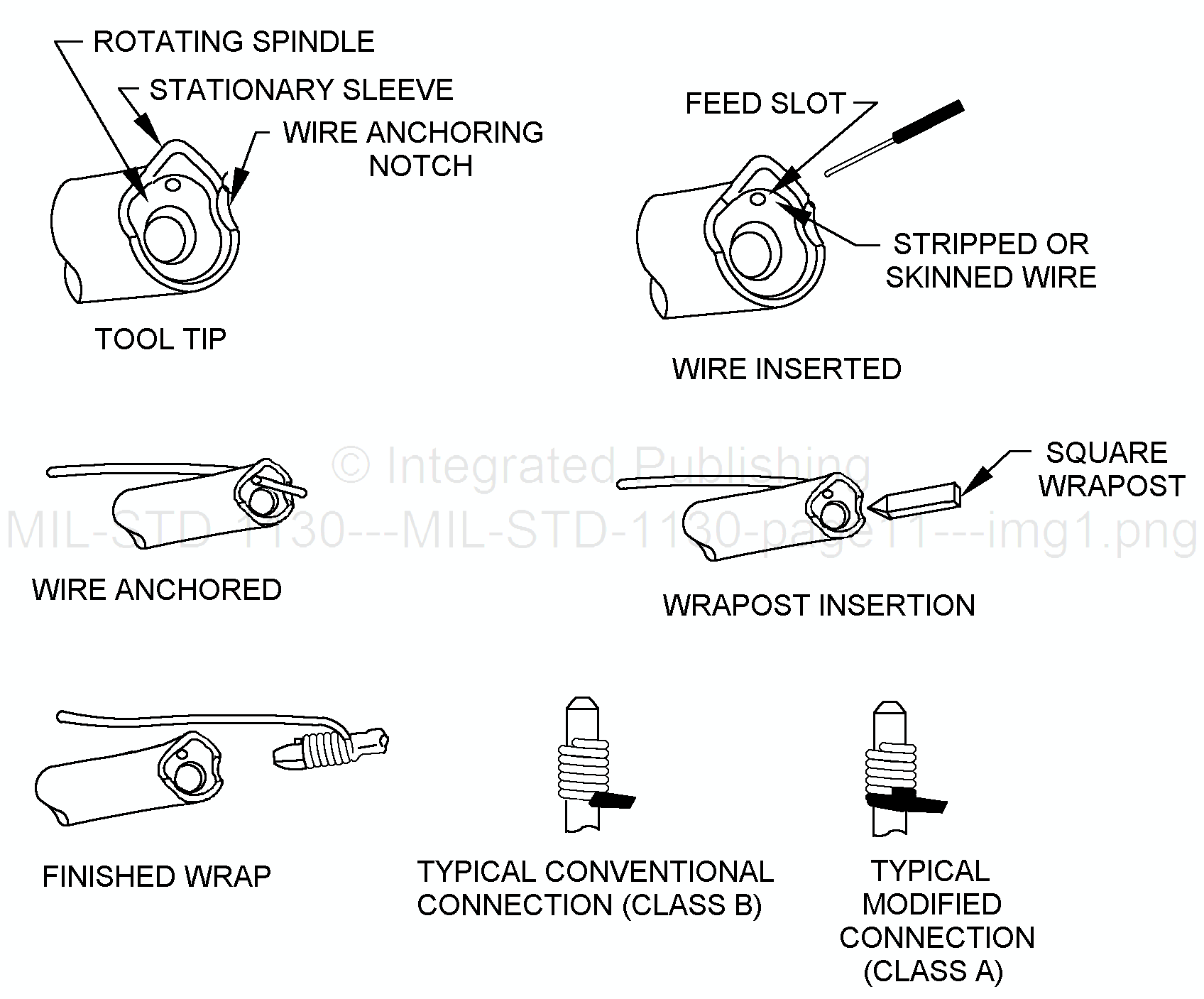

FIGURE 4.  Solderless wrapped connection process.
