MIL-STD-1130 Connections, Electrical, Solderless WrappedThis standard establishes the requirements to produce mechanically and electrically stable, solderless wrapped, electrical connections made with single, solid, round wire and appropriately designed wrapposts terminals.This standard includes:a. Classes and requirements for solderless wrapped connections. b. Description and requirements for the wire used in making the solderless wrapped connections. c. Description and requirements for the wrappost used in making the solderless wrapped connections.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

MIL-STD-1130C

5.6  Performance requirements of solderless wrapped connections.

5.6.1  Strip force.  A completed solderless wrapped connection, with the minimum number of turns listed in table II, shall be capable of meeting the minimum strip force specified in table IV.  The minimum strip force shall be obtained before the wrapped connection has been moved along the wrappost a length equivalent to the diameter of the conductor used on the wrappost.  The samples shall be tested using a test fixture illustrated in figure 13.  The clearance between the wrappost and the test fixture jaws shall not exceed 70 percent of the wire diameter.  The stripping force shall be applied at a uniform rate of 1 to 10 inches per minute.

TABLE IV.  Strip-force limits.

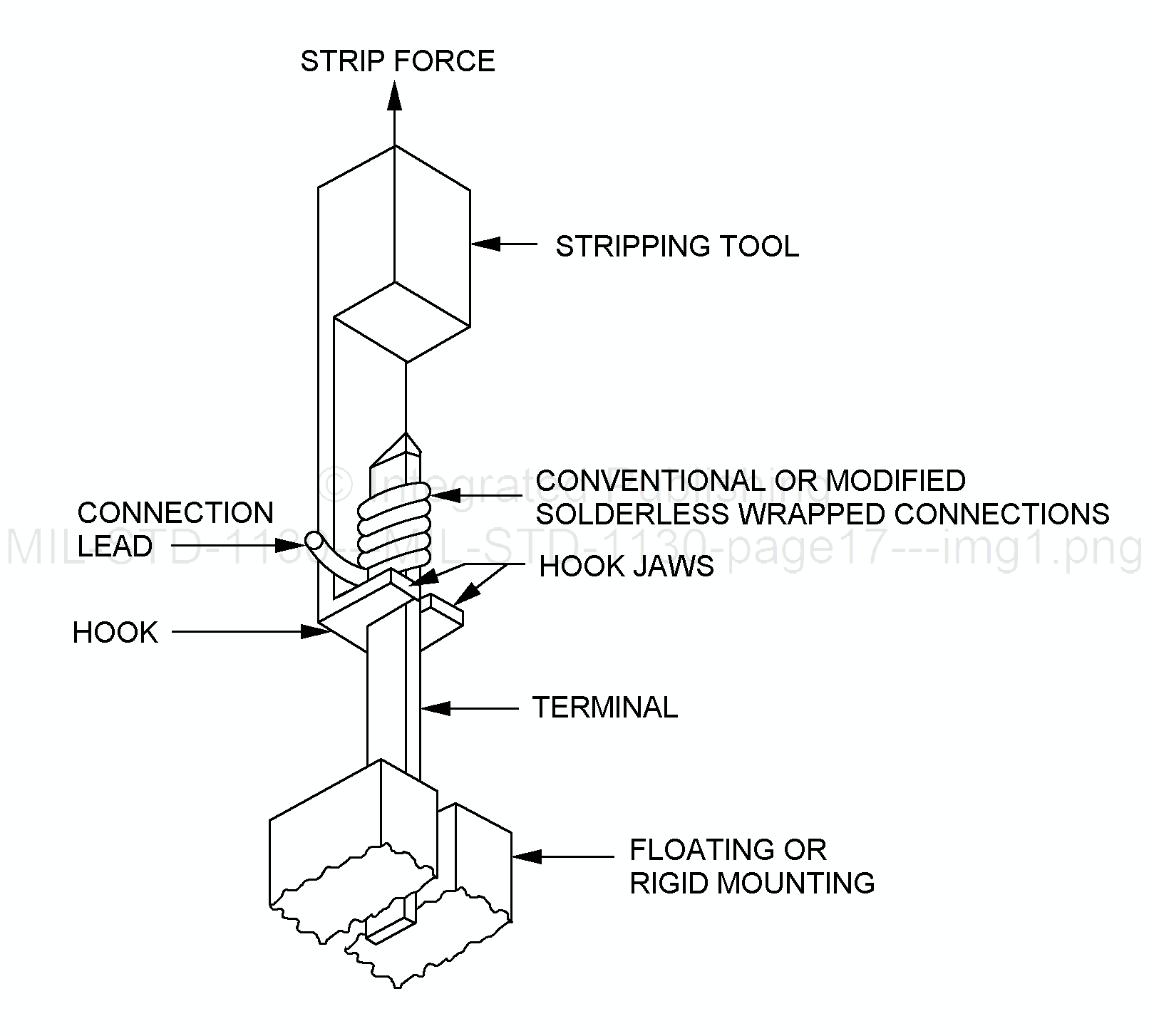

FIGURE 13.  Stripping test fixture.

13
