MIL-STD-1130 Connections, Electrical, Solderless WrappedThis standard establishes the requirements to produce mechanically and electrically stable, solderless wrapped, electrical connections made with single, solid, round wire and appropriately designed wrapposts terminals.This standard includes:a. Classes and requirements for solderless wrapped connections. b. Description and requirements for the wire used in making the solderless wrapped connections. c. Description and requirements for the wrappost used in making the solderless wrapped connections.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-STD-1130C

f.        Space between adjacent wrapper turns exceeding one half the diameter of the uninsulated conductors.  (See figures 11 and 12.)  The sum of all gaps should not exceed one wire diameter; excluding the first and last turn.

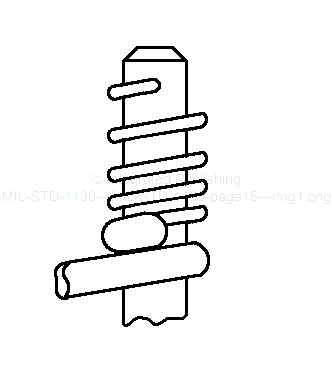

FIGURE 11.  Spiral wrap.

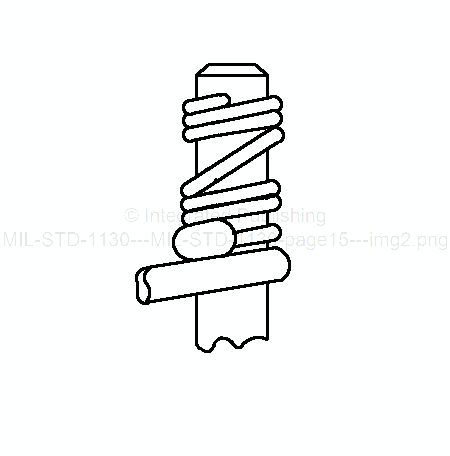

FIGURE 12.  Open wrap.


g.    The wire shall not be routed in any manner which will tend to unwrap the wire


5.3.3  Spacing of wrappost.  Wrappost spacing shall allow sufficient room to accommodate the wrapping tool.


11
