MIL-STD-1554A
w/CHANGE 1
Contacts (Insert arrangement 10-2) |
||
Contact position ID |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
1 |
+.000 |
+.083 (2.11) |
2 |
+.000 |
-.083 (2.11) |
Shell size |
Arrangement No. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes |
10 |
2 |
2 |
20 |
I |
All |
MS24260-2 |

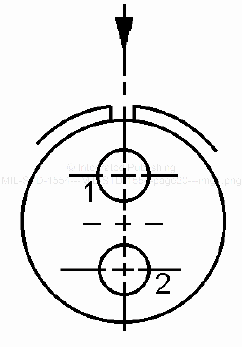

FIGURE 3.Insert arrangement, electrical connector, shell size 10 (MIL-DTL-26500 and
MIL-DTL-83723, series III).
15
