MIL-STD-1554A
w/CHANGE 1
Contacts (Insert arrangement 20-16) |
|||||
Contact position ID |
Location |
Contact position ID |
Location |
||
X-axis (mm) |
Y-axis (mm) |
X-axis (mm) |
Y-axis (mm) |
||
1 |
-.154 (3.91) |
+.062 (1.57) |
9 |
-.308 (7.82) |
-.150 (3.81) |
2 |
-.094 (2.39) |
-.122 (3.10) |
10 |
-.182 (4.62) |
-.290 (7.37) |
3 |
+.094 (2.39) |
-.122 (3.10) |
11 |
+.000 (.00) |
-.343 (8.71) |
4 |
+.154 (3.91) |
+.062 (1.57) |
12 |
+.182 (4.62) |
-.290 (7.37) |
5 |
+.000 (.00) |
+.175 (4.45) |
13 |
+.308 (7.82) |
-.150 (3.81) |
6 |
-.118 (3.00) |
+.322 (8.18) |
14 |
+.341 (8.66) |
+.036 (.91) |
7 |
-.271 (6.88) |
+.211 (5.36) |
15 |
+.271 (6.88) |
+.211 (5.36) |
8 |
-.341 (8.66) |
+.036 (.91) |
16 |
+.118 (3.00) |
+.322 (8.18) |
Shell size |
Arrangement no. |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes |
20 |
16 |
16 |
16 |
I |
All |
MS27561-16 |

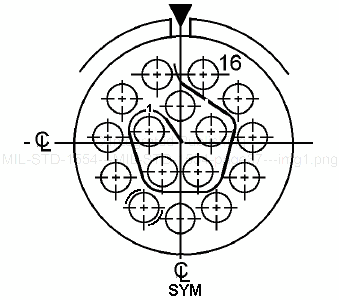

FIGURE 8. Insert arrangement, electrical connector, shell size 20 (MIL-DTL-26500 and
MIL-DTL-83723, series III).
32
