MIL-STD-1554 Insert Arrangements For Mil-Dtl-83723 Series Iii And Mil-Dtl-26500 Environment Resisting, Circular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-83723 series III and MIL-DTL-26500 environment resisting, circular, electrical connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60

MIL-STD-1554A

w/CHANGE 1

Contacts (Insert arrangement 10-20)
Contact position ID	Contact location
Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.000	-.092 (2.34)
2	+.000	+.092 (2.34)

Shell size	Arrangement no.	Number of contacts	Size contacts	Service rating	Contact location	Supersedes
10	20	2	16	I	All	MS24260-20

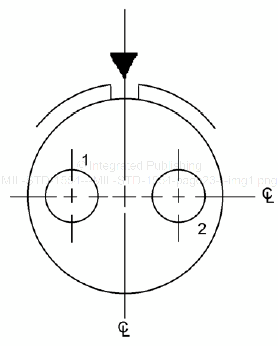

FIGURE 3. Insert arrangement, electrical connector, shell size 10 (MIL-DTL-26500 and

MIL-DTL-83723, series III) - Continued.
