MIL-STD-1554A
w/CHANGE 1
Contacts (Insert arrangement 24-19) |
|||||
Contact position ID |
Location |
Contact position ID |
Location |
||
X-axis (mm) |
Y-axis (mm) |
X-axis (mm) |
Y-axis (mm) |
||
1 |
+.000 (.00) |
+.000 (.00) |
11 |
-.476 (12.09) |
+.000 (.00) |
2 |
-.119 (3.02) |
+.206 (5.23) |
12 |
-.357 (9.07) |
-.206 (5.23) |
3 |
-.238 (6.05) |
+.000 (.00) |
13 |
-.238 (6.05) |
-.412 (10.46) |
4 |
-.119 (3.02) |
-.206 (5.23) |
14 |
+.000 (.00) |
-.412 (10.46) |
5 |
+.119 (3.02) |
-.206 (5.23) |
15 |
+.238 (6.05) |
-.412 (10.46) |
6 |
+.238 (6.05) |
+.000 (.00) |
16 |
+.357 (9.07) |
-.206 (5.23) |
7 |
+.119 (3.02) |
+.206 (5.23) |
17 |
+.476 (12.09) |
+.000 (.00) |

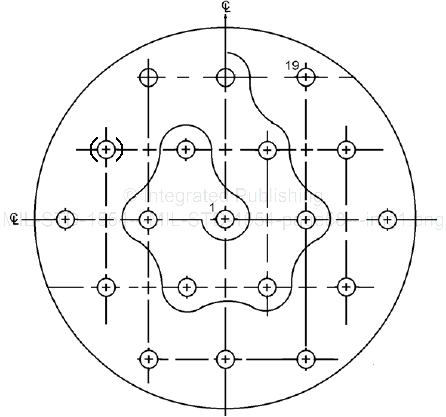

FIGURE 10. Insert arrangement, electrical connector, shell size 24 (MIL-DTL-26500 and
MIL-DTL-83723, series III) - Continued.
53
