DETAIL SPECIFICATION SHEET
INCH-POUND MS24265R
20 August 2009
SUPERSEDING MS24265P
6 February 2004
CONNECTORS, RECEPTACLE, ELECTRICAL, SINGLE HOLE MOUNT, MINIATURE, CLASSES E, F, G, H AND R
Inactive for new design after 14 November 1977. For new design, use MIL-DTL-83723, series III.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26500.

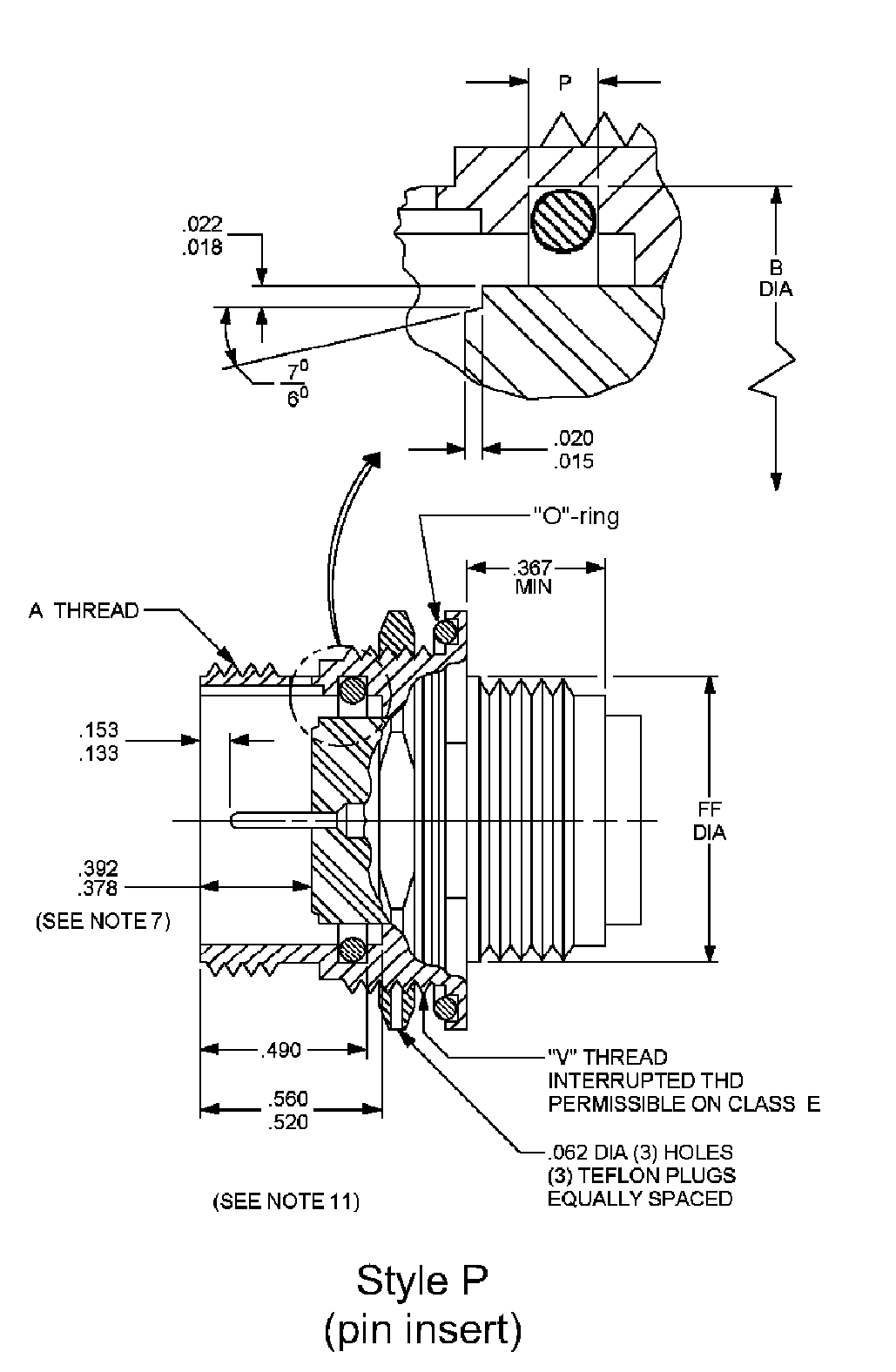

FIGURE 1. Receptacle threaded for classes E, F, G, H and R.
AMSC N/A FSC 5935
