MS24265R
STYLE P (PIN INSERT)
HERMETIC (CLASS "H" RECEPTACLES, TYPE "B" THIS RECEPTACLE MATES WITH MS24266, TYPE "B"
NOTES:
1. Dimensions are in inches. Unless otherwise specified, tolerances on decimals is ± .005.
2. Metric equivalents are given for information only.
3. All diameters to be concentric with each other within .015 T.I.R.
4. All diameters in the same plane to be concentric with each other within .004 T.I.R.
5. True position (T.P.) tolerances specified are for maximum material conditions (M.M.C).
6. Distance between end of shell and the point at which a gauge pin having the same basic diameter as the mating contact and a square face, engages socket contact spring.
7. Dimensions on pin and socket contact locations and end of shells to insert faces apply when contacts are placed in inserts for inspection or application.

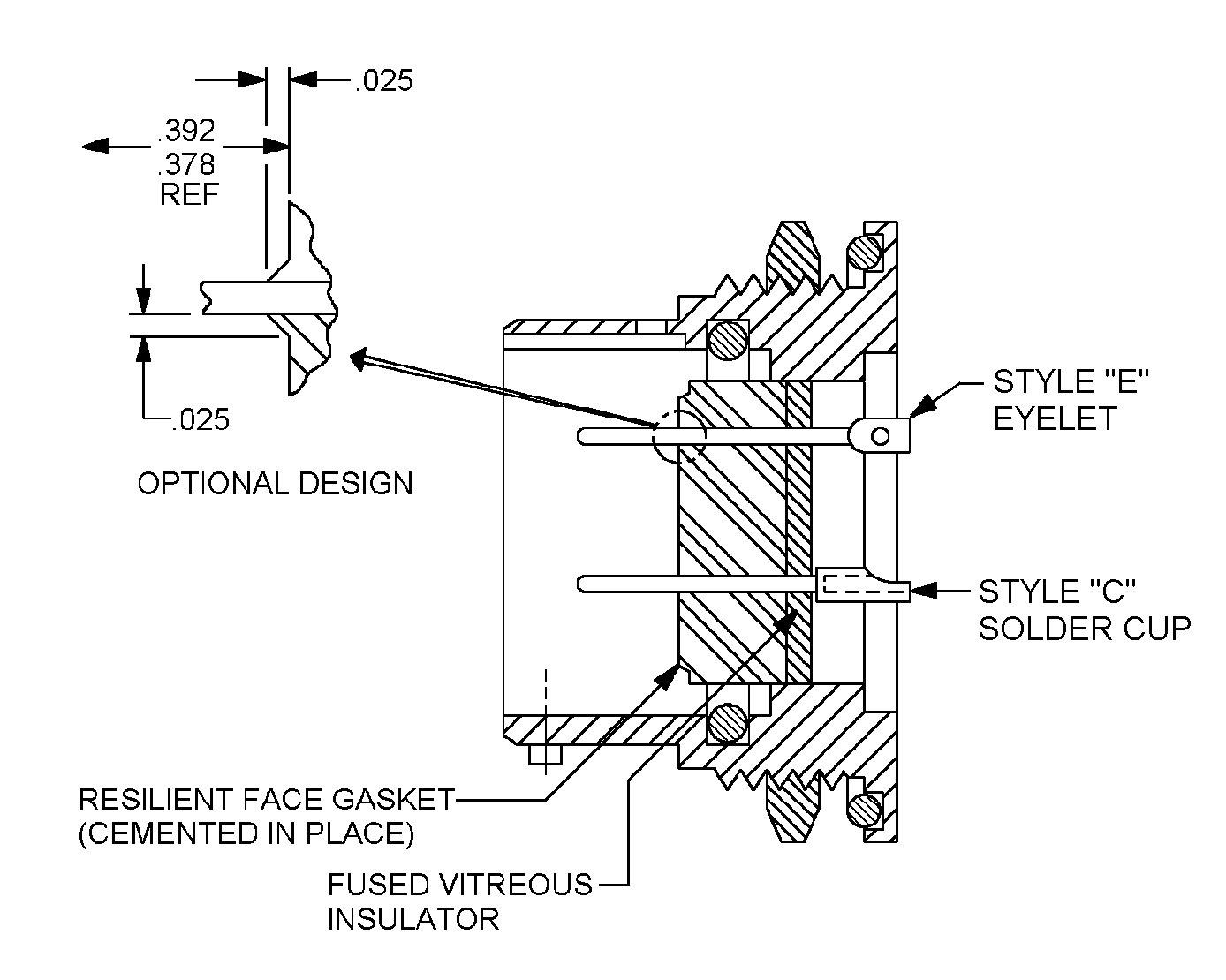

FIGURE 5. Receptacle, bayonet, hermetic (class H) - Continued.
13
