MS24265 Connectors, Receptacle, Electrical, Single Hole Mount, Miniature, Classes E, F, G, H And R

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23


MS24265R



Inches

mm

.015

.38

.025

.64

.073

1.85

.085

2.16

.090

2.29

.120

3.05

.156

3.96

.220

5.59

.308

7.82

.378

9.60

.392

9.96

1.125

28.58

1.375

34.92

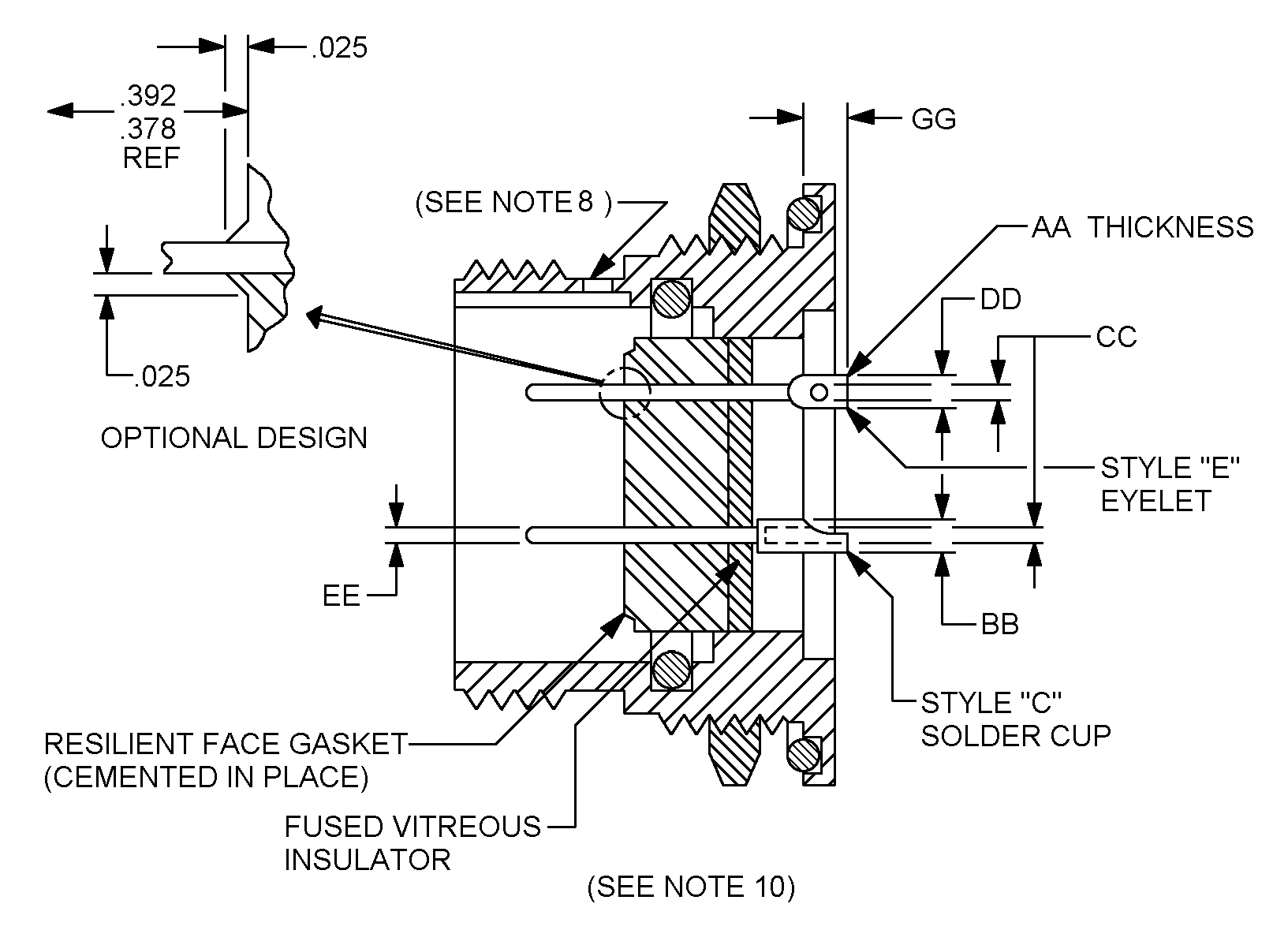

FIGURE 3.  Receptacle, threaded, shell design for class H, (hermetic) type T.
