MIL-DTL-25516F
A
Ammeter
0-1 Amp
R2 Variable
0-100 mil ohms
resistor
0-15 Ohms
Mv
0-100 mV
R1 Variable
resistor
Millivoltmeter
SW Switch
Less than .01 ohms
Power supply
10 volts DC at 1
Contact resistance
amp.
a. With test leads open, close switch SW.
b. Adjust R2 for a millivoltmeter reading of 50 mV.
c. Connect test leads across the test sample and see that the mV drops significantly before opening
switch SW required in (d). A drop in mV will indicate satisfactory dry circuit continuity.
d. Open SW and then adjust R1 for a circuit current A of one ampere.
e. Measure the millivolt drop mV across the test sample and call this ET.

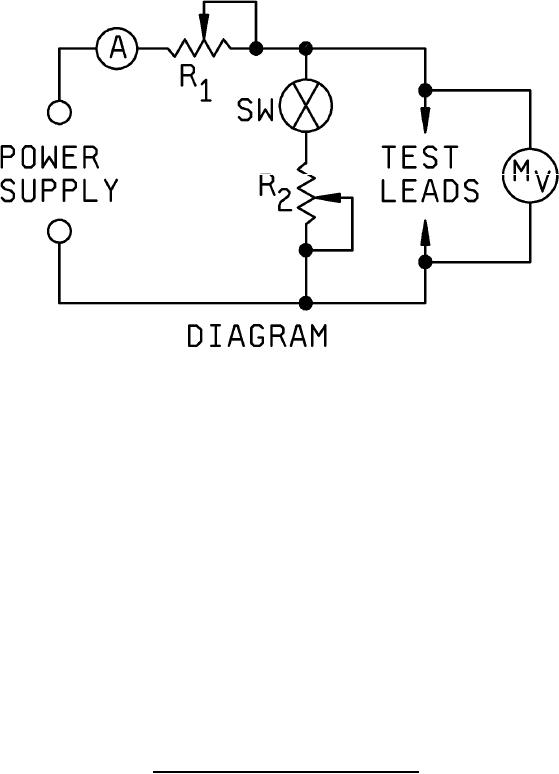

FIGURE 5. Resistance measurement (voltage drop).
