INCH-POUND
MIL-PRF-39012/18H
16 November 2006
SUPERSEDING
MIL-PRF-39012/18G
26 September 1994
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRICAL, COAXIAL, RADIO FREQUENCY,
(SERIES BNC, (CABLED), SOCKET CONTACT, FLANGE MOUNTED, CLASS 2)
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-PRF-39012.
Inches
mm
Inches
mm
Inches
mm
8.59
.535
13.59
.338
1.91
.075
8.84
.565
14.35
.348
2.41
.095
11.07
.680
17.30
.436
2.51
.099
.496
12.60
.700
17.80
3.05
.120
.504
12.80
6.22
.245
.505
12.83
6.48
.255

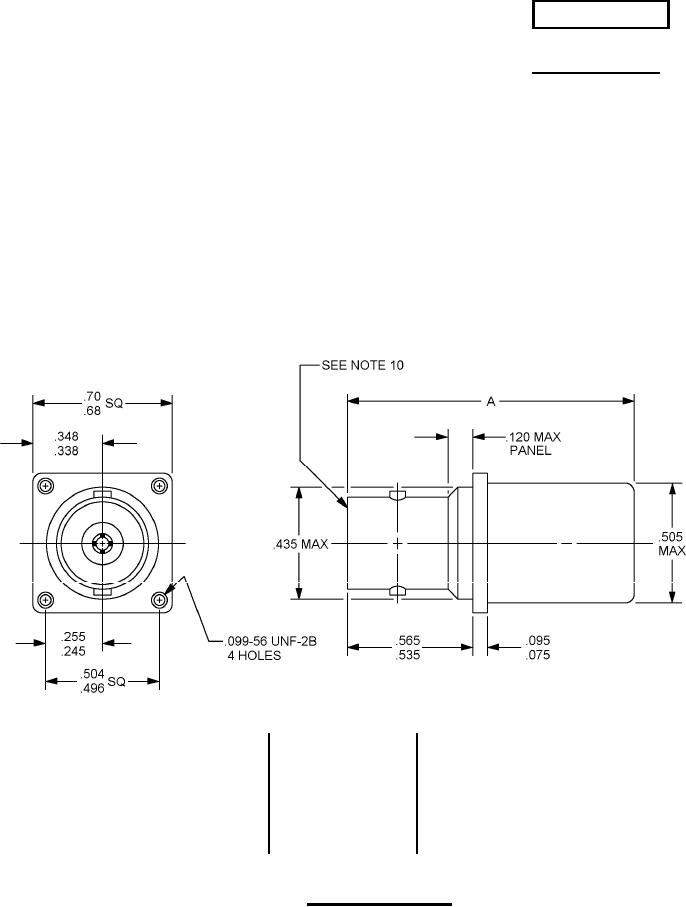

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
