INCH-POUND
MIL-PRF-39012/20H
16 November 2006
SUPERSEDING
MIL-PRF-39012/20G
26 September 1994
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, PLUG, ELECTRICAL, COAXIAL, RADIO FREQUENCY,
(SERIES BNC (CABLED), PIN CONTACT, RIGHT ANGLE, CLASS 2)
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-PRF-39012.

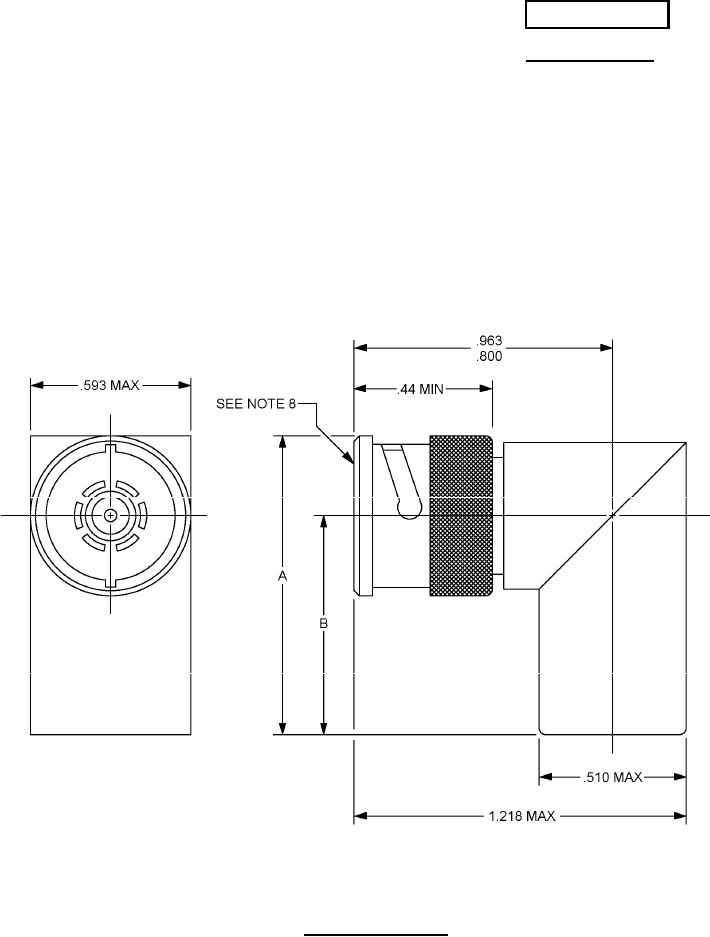

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
