MIL-PRF-39012/20H

Inches

.146

3.71

.166

4.22

.333

8.46

.353

8.97

.427

10.85

.447

11.35

.593

15.06

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

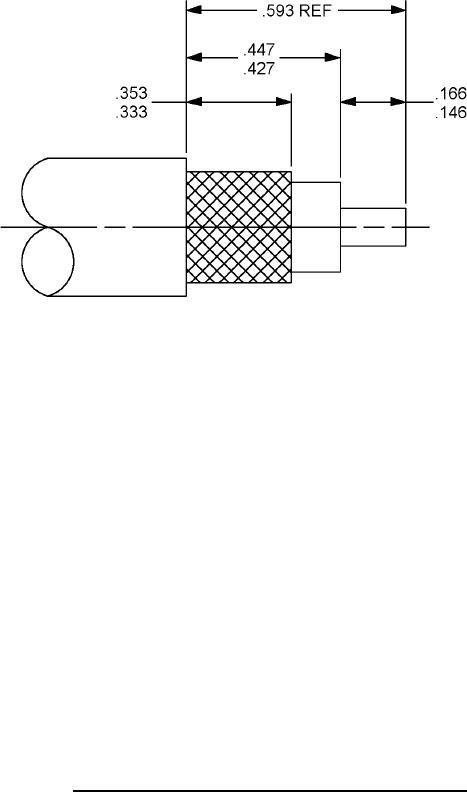

FIGURE 3. Cable stripping dimensions for field replaceable connectors.
