W-C-596H/GEN

Inches

.010

.02

.030

.033

.045

.047

.055

0.25

0.5

0.76

0.84

1.14

1.19

1.40

.056

.203

.240

.242

.625

.628

1.500

1.42

5.16

6.10

6.15

15.88

15.95

38.10

NOTES

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Axis of blade and axis on holder must have a combined concentricity and axial alinement tolerance of .006 (0.15 mm) maximum TIR.

4. Length to suit total tool weight of 1.50 pounds.

5. The blade is to be fastened to the handle in a rigid manner.

6. Sharp edges shall be removed to a maximum radius of .015 inch (0.38 mm).

7. The blade shall be of steel having a Rockwell hardness of C-58 to 60. The handle shall be of cold rolled steel.

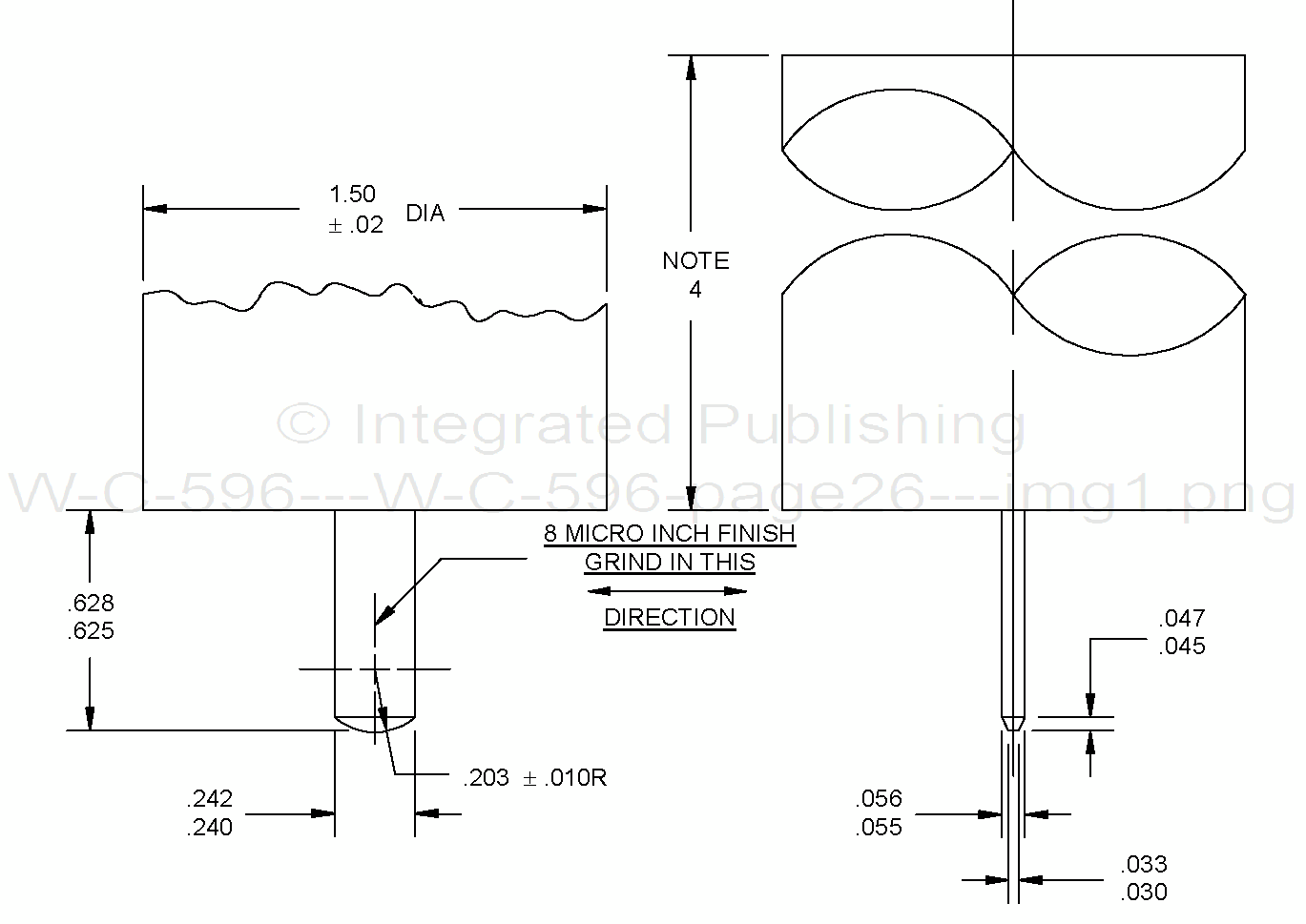

FIGURE 2. Pull-out tool No. 1.
