W-C-596 Connector, Electrical, Power, General Specification ForThis specification covers electrical plugs, receptacles, and cable outlets for service from 120 to 600 volts with current ratings up to 60 amperes and a frequency rating of 50/60 hertz. It does not cover devices for use in hazardous locations as defined in the National Electrical Code. Special plugs, receptacles, and cable connectors for 400 Hz and dc applications are also included. Connectors are to be used with copper or copperclad aluminum wire only.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38


W-C-596H/GEN



NOTES

1.    Dimensions are in inches.

2.    Metric equivalents are given for information only.

3.    Unless otherwise specified, tolerance is ± .005 (0.13 mm).

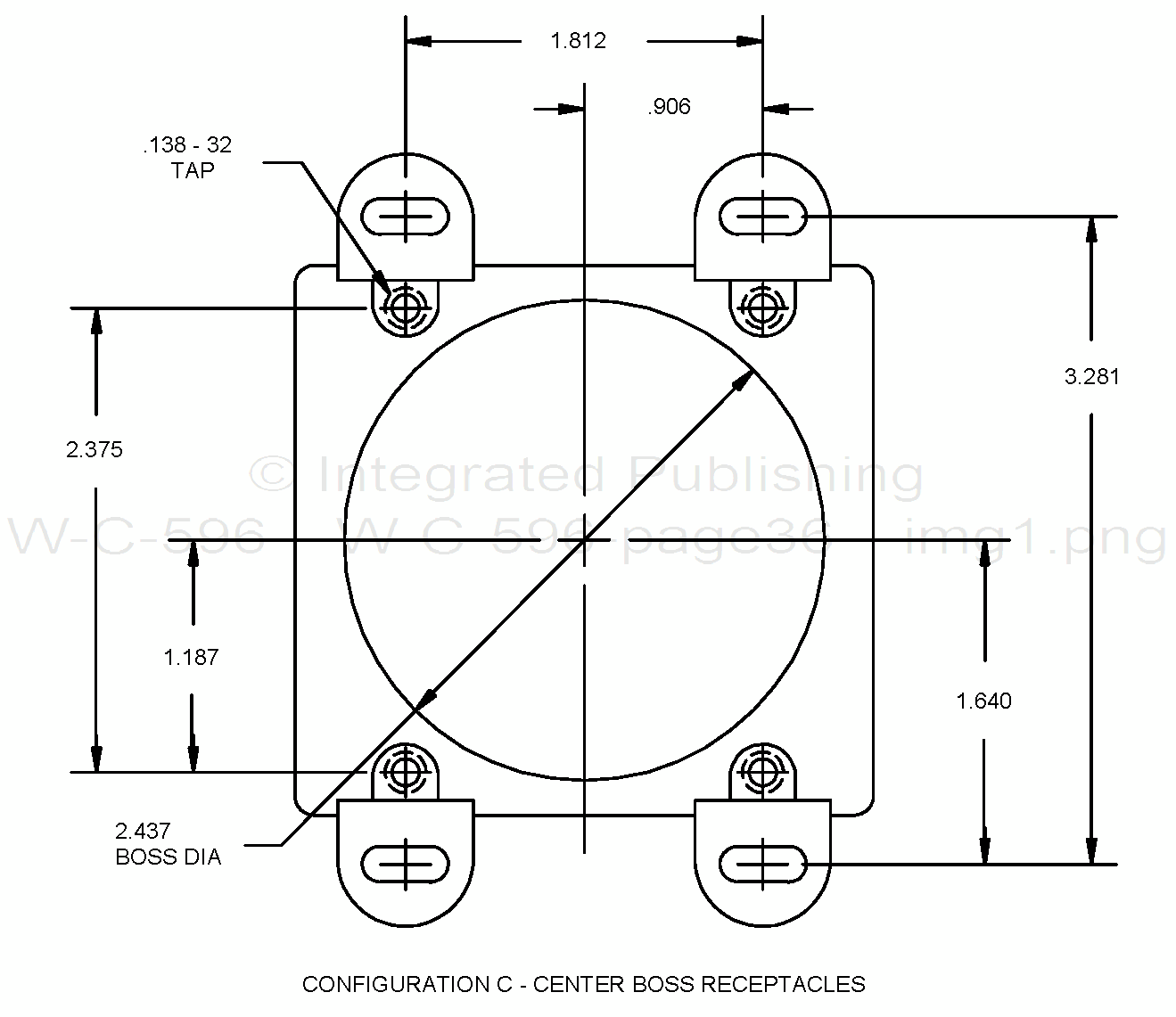

4.    Configuration C is for four wire 30, 50 and 60 ampere receptacles.

5.    Outline configuration is optional.


FIGURE 11.  Mounting dimensions - Continued.


36
