W-C-596H/GEN

NOTES

1. C is a board of hard maple, mounted rigidly and with the grain of the wood running vertically. The board shall be from 1.50 to 2.00 inches (38.1 to 50.8 mm) thick and of sufficient width and length and so located that when the plug is allowed to fall, it will not strike near any edge of the board. The screws may be tightened after each 200 cycles.

2. Dimensions are in inches.

3. Metric equivalents are given for information only.

4. Metric equivalents are in parentheses.

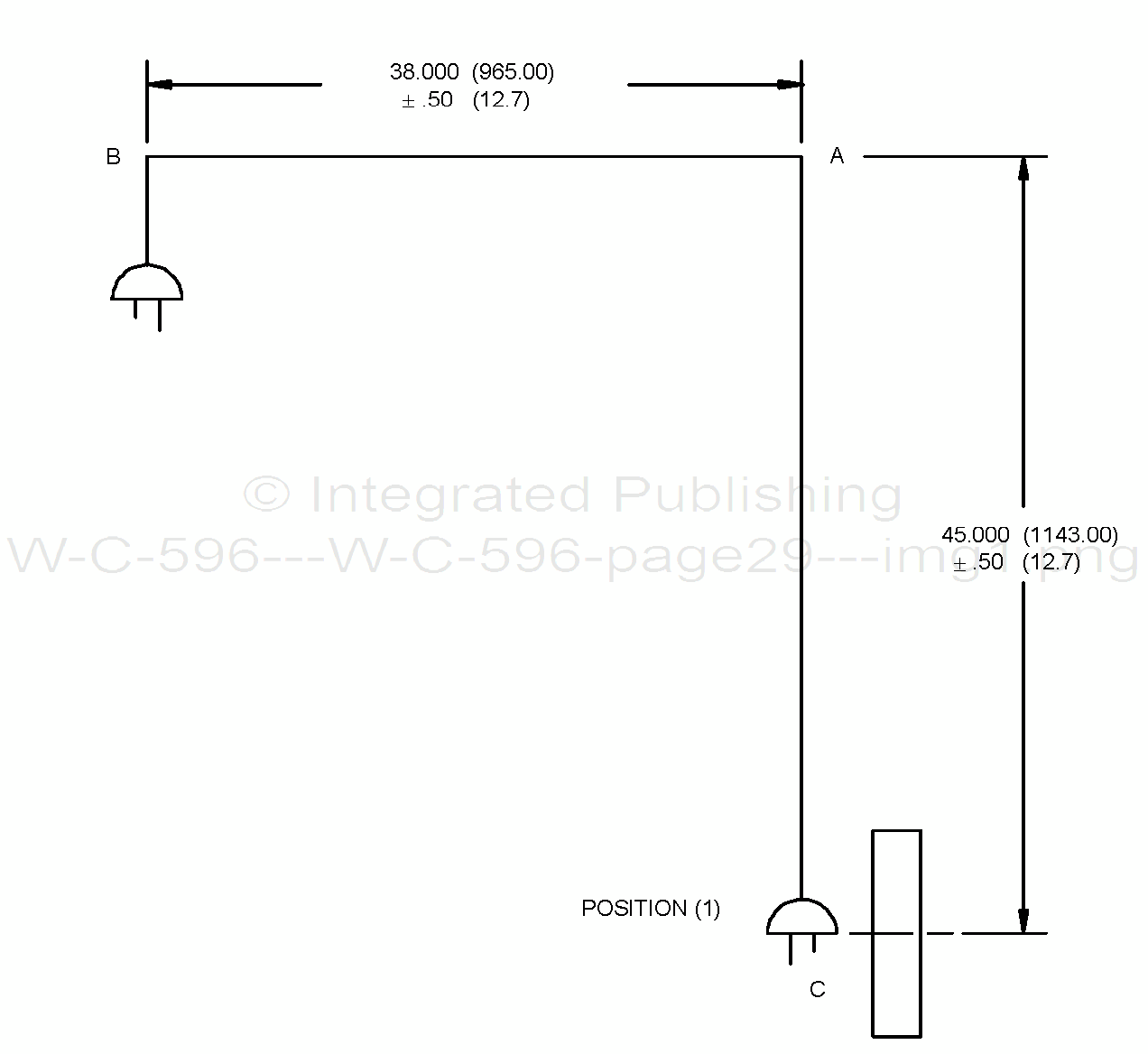

FIGURE 5. Mechanical shock test.
