MIL-PRF-39012/25F
.020 WIDE (4) SLOTS
EQUALLY SPACED
MARKING
.156 ± .002 DIA.
.313
.187 DIA.
DIA.
.31
30° ± 30'
.344 ± .001 DIA
BEFORE SLOTTING
.500 ± .010
.531 ± .010
.81
Inches
mm
Inches mm
.31
7.9
.001
0.03
.313 7.95
.002
0.05
.344 8.74
.010
0.25
.500 12.70
.020
0.51
.513 13.03
.156
3.96
.81 20.6
.187
4.75
.25
6.3
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ± .02 inch (0.5 mm) for two place decimals, ± .005 inch
(0.13 mm) for three place decimals and ± 30' on angles.
4. The material shall be brass. Silver plating shall be in accordance with MIL-PRF-39012, .0001 inch
(0.003 mm) thick, minimum.

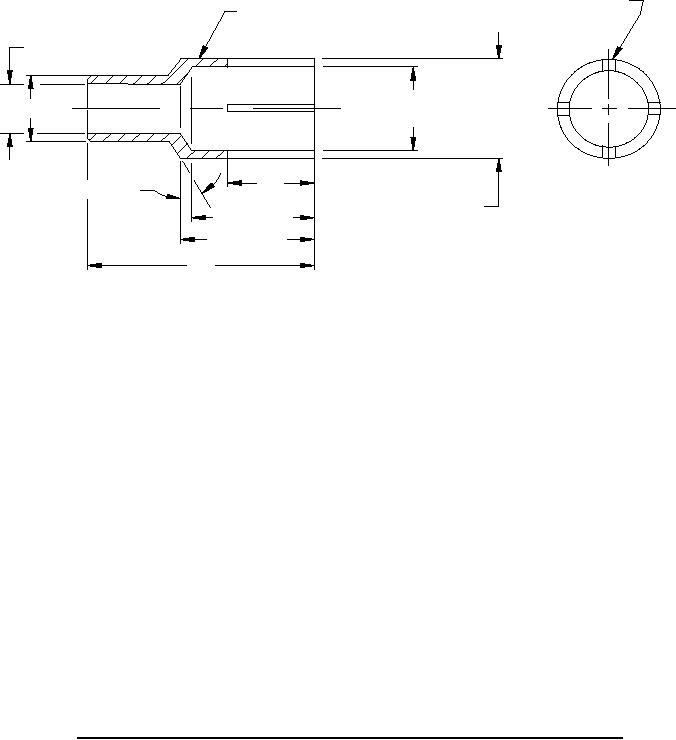

FIGURE 6. M39012/25-0010 shield for series BNC receptacles (Silver plated connectors only).
10
