MIL-PRF-39012/25F
30°
.015
.16 DIA HOLE DR
THRU BOTH WALLS
.31
.16
MARKING
.437 ±.001
.358 ±.003
.50
.388 DIA
DIA.
DIA.
.88
.010 RAD.
45°
Inches mm
Inches mm
.358 9.09
.001 0.03
.388 9.86
.003 0.08
.437 1.10
.010 0.25
.50 12.7
.015 0.38
.88 22.3
.16 4.1
.25 6.3
.31 7.9
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.02 inch (0.5 mm) for two place decimals, ±.005 inch
(0.13 mm) for three place decimals, and ± 30' on angles.
4. The material shall be brass. Silver plate shall be in accordance with MIL-PRF-39012, .0001 inch
(0.003 mm) thick minimum.

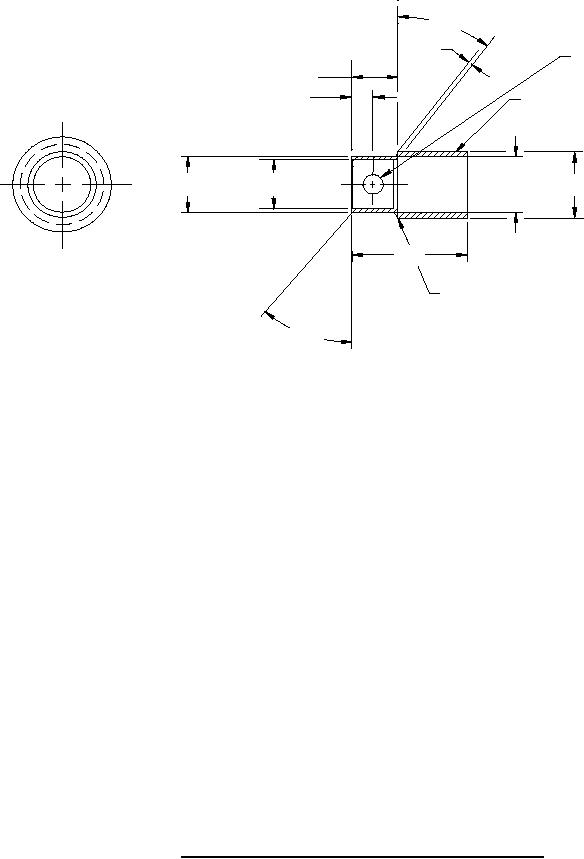

FIGURE 3. M39012/25-0005 shield (Silver plated connectors only).
5
