MIL-STD-1554-SUP Insert Arrangements for MIL-DTL-83723 Series III and MIL-DTL-26500 Environment Resisting, Circular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-83723 series III and MIL-DTL-26500 environment resisting, circular, electrical connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59

MIL-STD-1554A

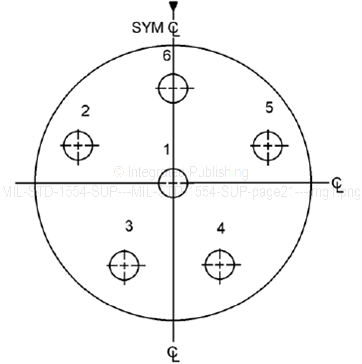

Contacts (Insert arrangement 10-6)
Contact position ID	Contact location
Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.000 (.00)	+.000 (.00)
2	-.120 (3.05)	+.050 (1.27)
3	-.065 (1.65)	-.113 (2.87)
4	+.065 (1.65)	-.113 (2.87)
5	+.120 (3.05)	+.050 (1.27)
6	+.000 (.00)	+.130 (3.30)

Shell size	Arrangement no.	Number of contacts	Size contacts	Service rating	Contact location	Supersedes
10	6	6	20	I	All	MS27748-6

Applicable to MIL-DTL-83723 Series III only.

FIGURE 3. Insert arrangement, electrical connector, shell size 10 (MIL-DTL-26500 and

MIL-DTL-83723 Series III) - Continued.
