MIL-STD-1554-SUP Insert Arrangements for MIL-DTL-83723 Series III and MIL-DTL-26500 Environment Resisting, Circular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-83723 series III and MIL-DTL-26500 environment resisting, circular, electrical connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59

MIL-STD-1554A

Contacts (Insert arrangement 24-19)
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.000 (.00)	+.000 (.00)	11	-.476 (12.09)	+.000 (.00)
2	-.119 (3.02)	+.206 (5.23)	12	-.357 (9.07)	-.206 (5.23)
3	-.238 (6.05)	+.000 (.00)	13	-.238 (6.05)	-.412 (10.46)
4	-.119 (3.02)	-.206 (5.23)	14	+.000 (.00)	-.412 (10.46)
5	+.119 (3.02)	-.206 (5.23)	15	+.238 (6.05)	-.412 (10.46)
6	+.238 (6.05)	+.000 (.00)	16	+.357 (9.07)	-.206 (5.23)
7	+.119 (3.02)	+.206 (5.23)	17	+.476 (12.09)	+.000 (.00)

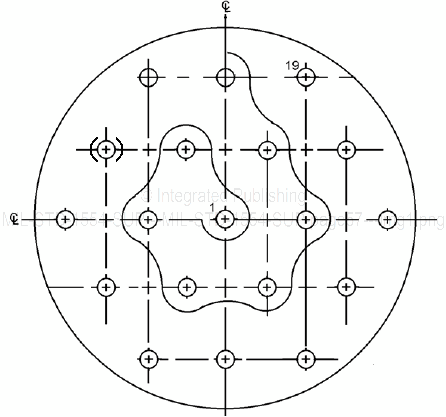

FIGURE 10. Insert arrangement, electrical connector, shell size 24 (MIL-DTL-26500 and

MIL-DTL-83723 Series III) - Continued.
