MIL-STD-1554-SUP Insert Arrangements for MIL-DTL-83723 Series III and MIL-DTL-26500 Environment Resisting, Circular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-83723 series III and MIL-DTL-26500 environment resisting, circular, electrical connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59

MIL-STD-1554A

Contacts (Insert arrangement 16-24)
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.000 (.00)	+.075 (1.91)	13	+.289 (7.34)	-.037 (.94)
2	-.065 (1.65)	-.037 (.94)	14	+.289 (7.34)	+.093 (2.36)
3	+.065 (1.65)	-.037 (.94)	15	+.224 (5.69)	+.204 (5.18)
4	+.177 (4.50)	+.028 (.71)	16	+.112 (2.84)	+.269 (6.83)
5	+.112 (2.84)	+.140 (3.56)	17	-.112 (2.84)	+.269 (6.83)
6	+.000 (.00)	+.204 (5.18)	18	-.224 (5.69)	+.204 (5.18)
7	-.112 (2.84)	+.140 (3.56)	19	-.289 (7.34)	+.093 (2.36)
8	-.177 (4.50)	+.028 (.71)	20	-.289 (7.34)	-.037 (.94)
9	-.177 (4.50)	-.102 (2.59)	21	-.177 (4.50)	-.232 (5.89)
10	-.065 (1.65)	-.167 (4.24)	22	-.065 (1.65)	-.297 (7.54)
11	+.065 (1.65)	-.167 (4.24)	23	+.065 (1.65)	-.297 (7.54)
12	+.177 (4.50)	-.102 (2.59)	24	+.177 (4.50)	-.232 (5.89)

Shell size	Arrangement no.	Number of contacts	Size contacts	Service rating	Contact location	Supersedes
16	24	24	20	I	All	MS24261-24

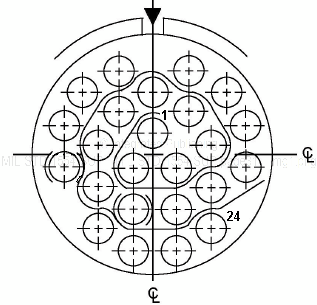

FIGURE 6. Insert arrangement, electrical connector, shell size 16 (MIL-DTL-26500 and

MIL-DTL-83723 Series III) - Continued.
