MIL-STD-1554A
Contacts (Insert arrangement 22-39) |
|||||
Contact position ID |
Location |
Contact position ID |
Location |
||
X-axis (mm) |
Y-axis (mm) |
X-axis (mm) |
Y-axis (mm) |
||
1 |
+.000 (.00) |
-.028 (.71) |
21 |
-.255 (6.48) |
+.376 (9.55) |
2 |
-.131 (3.33) |
+.077 (1.96) |
22 |
-.354 (8.99) |
+.284 (7.21) |
3 |
-.155 (3.94) |
-.093 (2.36) |
23 |
-.422 (10.72) |
+.168 (4.27) |
4 |
+.000 (.00) |
-.181 (4.60) |
24 |
-.453 (11.51) |
+.035 (.89) |
5 |
+.155 (3.94) |
-.093 (2.36) |
25 |
-.442 (11.23) |
-.103 (2.62) |
6 |
+.131 (3.33) |
+.077 (1.96) |
26 |
-.392 (9.96) |
-.229 (5.82) |
7 |
+.000 (.00) |
+.186 (4.72) |
27 |
-.307 (7.80) |
-.334 (8.48) |
8 |
-.065 (1.65) |
+.323 (8.20) |
28 |
-.197 (5.00) |
-.411 (10.44) |
9 |
-.191 (4.85) |
+.238 (6.05) |
29 |
-.067 (1.70) |
-.449 (11.40) |
10 |
-.299 (7.59) |
+.077 (1.96) |
30 |
+.067 (1.70) |
-.449 (11.40) |
11 |
-.307 (7.80) |
-.103 (2.62) |
31 |
+.197 (5.00) |
-.411 (10.44) |
12 |
-.174 (4.42) |
-.260 (6.60) |
32 |
+.307 (7.80) |
-.334 (8.48) |
13 |
+.000 (.00) |
-.334 (8.48) |
33 |
+.392 (9.96) |
-.229 (5.82) |

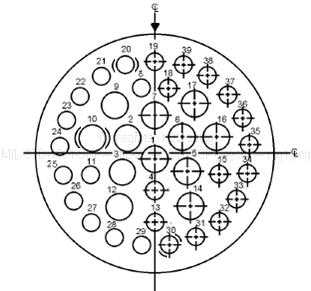

FIGURE 9. Insert arrangement, electrical connector, shell size 22 (MIL-DTL-26500 and
MIL-DTL-83723 Series III) - Continued.
43
