MIL-STD-1554A

Contacts (Insert arrangement 20-16)
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	-.154 (3.91)	+.062 (1.57)	9	-.308 (7.82)	-.150 (3.81)
2	-.094 (2.39)	-.122 (3.10)	10	-.182 (4.62)	-.290 (7.37)
3	+.094 (2.39)	-.122 (3.10)	11	+.000 (.00)	-.343 (8.71)
4	+.154 (3.91)	+.062 (1.57)	12	+.182 (4.62)	-.290 (7.37)
5	+.000 (.00)	+.175 (4.45)	13	+.308 (7.82)	-.150 (3.81)
6	-.118 (3.00)	+.322 (8.18)	14	+.341 (8.66)	+.036 (.91)
7	-.271 (6.88)	+.211 (5.36)	15	+.271 (6.88)	+.211 (5.36)
8	-.341 (8.66)	+.036 (.91)	16	+.118 (3.00)	+.322 (8.18)

Shell size	Arrangement no.	Number of contacts	Size contacts	Service rating	Contact location	Supersedes
20	16	16	16	I	All	MS27561-16

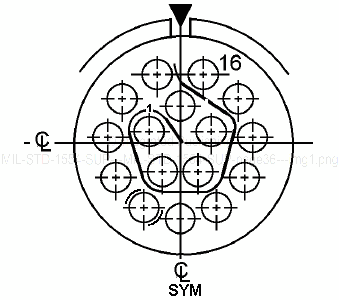

FIGURE 8. Insert arrangement, electrical connector, shell size 20 (MIL-DTL-26500 and

MIL-DTL-83723 Series III).

32
