MIL-STD-1698 Insert Arrangements For Mil-Dtl-28840 High Density High Shock Circular Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28840 classes D, DS, DJ, and DJS electrical, circular connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28

MIL-STD-16988

Contacts
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.114 (2.90)	+.132 (3.35)	7	-.171 (4.34)	+.033 (.84)
2	+.000 (.00)	+.132 (3.35)	8	+.114 (2.90)	-.066 (1.68)
3	-.114 (2.90)	+.132 (3.35)	9	+.000 (.00)	-.066 (1.68)
4	+.171 (4.34)	+.033 (.84)	10	-.114 (2.90)	-.066 (1.68)
5	+.057 (1.45)	+.033 (.84)	11	+.057 (1.45)	-.165 (4.19)
6	-.057 (1.45)	+.033 (.84)	12	-.057 (1.45)	-.165 (4.19)

Shell size designator	Arrangement number	Shell size	Number of contacts	Size contacts	Service rating	Contact location
8	1	13	12	20	A	All

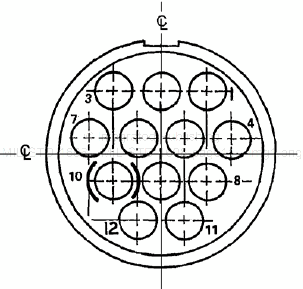

FIGURE 3. Insert arrangement shell size 13.

7
