MIL-STD-16988
Contacts |
|||||
Contact position ID |
Location |
Contact position ID |
Location |
||
X-axis (mm) |
Y-axis (mm) |
X-axis (mm) |
Y-axis (mm) |
||
1 |
+.171 (4.34) |
+.396 (10.06) |
33 |
-.057 (1.45) |
+.000 (.00) |
2 |
+.057 (1.45) |
+.396 (10.06) |
34 |
-.171 (4.34) |
+.000 (.00) |
3 |
-.057 (1.45) |
+.396 (10.06) |
35 |
-.285 (7.24) |
+.000 (.00) |
4 |
-.171 (4.34) |
+.396 (10.06) |
36 |
-.399 (10.13) |
+.000 (.00) |
5 |
+.342 (8.69) |
+.297 (7.54) |
37 |
+.456 (11.58) |
-.099 (2.51) |
6 |
+.228 (5.79) |
+.297 (7.54) |
38 |
+.342 (8.69) |
-.099 (2.51) |
7 |
+.114 (2.90) |
+.297 (7.54) |
39 |
+.228 (5.79) |
-.099 (2.51) |
8 |
+.000 (.00) |
+.297 (7.54) |
40 |
+.114 (2.90) |
-.099 (2.51) |
9 |
-.114 (2.90) |
+.297 (7.54) |
41 |
+.000 (.00) |
-.099 (2.51) |
10 |
-.228 (5.79) |
+.297 (7.54) |
42 |
-.114 (2.90) |
-.099 (2.51) |
11 |
-.342 (8.69) |
+.297 (7.54) |
43 |
-.228 (5.79) |
-.099 (2.51) |

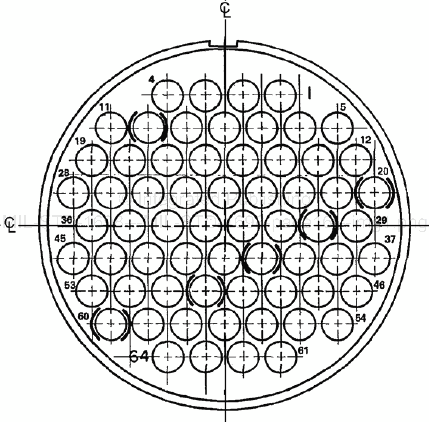

FIGURE 7. Insert arrangement shell size 23.
12
