MIL-STD-16988
Contacts |
|||||
Contact position ID |
Location |
Contact position ID |
Location |
||
X-axis (mm) |
Y-axis (mm) |
X-axis (mm) |
Y-axis (mm) |
||
1 |
+.171 (4.34) |
+.710 (18.03) |
79 |
-.342 (8.69) |
+.017 (.43) |
2 |
+.057 (1.45) |
+.710 (18.03) |
80 |
-.456 (11.58) |
+.017 (.43) |
3 |
-.057 (1.45) |
+.710 (18.03) |
81 |
-.570 (14.48) |
+.017 (.43) |
4 |
-.171 (4.34) |
+.710 (18.03) |
82 |
-.684 (17.37) |
+.017 (.43) |
5 |
+.342 (8.69) |
+.611 (15.52) |
83 |
+.627 (15.93) |
-.082 (2.08) |
6 |
+.228 (5.79) |
+.611 (15.52) |
84 |
+.513 (13.03) |
-.082 (2.08) |
7 |
+.114 (2.90) |
+.611 (15.52) |
85 |
+.399 (10.13) |
-.082 (2.08) |
8 |
+.000 (.00) |
+.611 (15.52) |
86 |
+.285 (7.24) |
-.082 (2.08) |
9 |
-.114 (2.90) |
+.611 (15.52) |
87 |
+.171 (4.34) |
-.082 (2.08) |
10 |
-.228 (5.79) |
+.611 (15.52) |
88 |
+.057 (1.45) |
-.082 (2.08) |

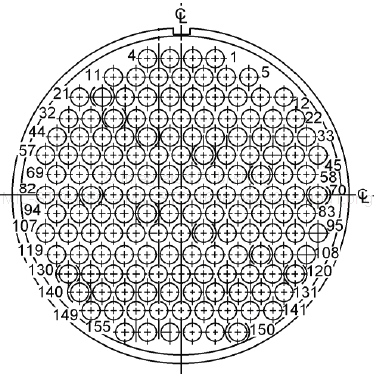

FIGURE 10. Insert arrangement shell size 33.
20
