MIL-STD-1698 Insert Arrangements For Mil-Dtl-28840 High Density High Shock Circular Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28840 classes D, DS, DJ, and DJS electrical, circular connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28

MIL-STD-16988

Contacts
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.228 (5.79)	+.297 (7.54)	22	-.057 (1.45)	+.000 (.00)
2	+.114 (2.90)	+.297 (7.54)	23	-.171 (4.34)	+.000 (.00)
3	+.000 (.00)	+.297 (7.54)	24	-.285 (7.24)	+.000 (.00)
4	-.114 (2.90)	+.297 (7.54)	25	+.342 (8.69)	-.099 (2.51)
5	-.228 (5.79)	+.297 (7.54)	26	+.228 (5.79)	-.099 (2.51)
6	+.285 (7.24)	+.198 (5.03)	27	+.114 (2.90)	-.099 (2.51)
7	+.171 (4.34)	+.198 (5.03)	28	+.000 (.00)	-.099 (2.51)
8	+.057 (1.45)	+.198 (5.03)	29	-.114 (2.90)	-.099 (2.51)
9	-.057 (1.45)	+.198 (5.03)	30	-.228 (5.79)	-.099 (2.51)
10	-.171 (4.34)	+.198 (5.03)	31	-.342 (8.69)	-.099 (2.51)
11	-.285 (7.24)	+.198 (5.03)	32	+.285 (7.24)	-.198 (5.03)
12	+.342 (8.69)	+.099 (2.51)	33	+.171 (4.34)	-.198 (5.03)
13	+.228 (5.79)	+.099 (2.51)	34	+.057 (1.45)	-.198 (5.03)
14	+.114 (2.90)	+.099 (2.51)	35	-.057 (1.45)	-.198 (5.03)

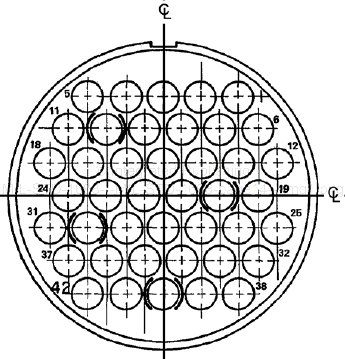

FIGURE 6. Insert arrangement shell size 19.
