MIL-STD-1698 Insert Arrangements For Mil-Dtl-28840 High Density High Shock Circular Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-28840 classes D, DS, DJ, and DJS electrical, circular connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28

MIL-STD-16988

Contacts
Contact position ID	Location		Contact position ID	Location
Contact position ID	X-axis (mm)	Y-axis (mm)	Contact position ID	X-axis (mm)	Y-axis (mm)
1	+.228 (5.79)	+.594 (15.09)	62	-.114 (2.90)	+.000 (.00)
2	+.114 (2.90)	+.594 (15.09)	63	-.228 (5.79)	+.000 (.00)
3	+.000 (.00)	+.594 (15.09)	64	-.342 (8.69)	+.000 (.00)
4	-.114 (2.90)	+.594 (15.09)	65	-.456 (11.58)	+.000 (.00)
5	-.228 (5.79)	+.594 (15.09)	66	-.570 (14.48)	+.000 (.00)
6	+.399 (10.13)	+.495 (12.57)	67	+.627 (15.93)	-.099 (2.51)
7	+.285 (7.24)	+.495 (12.57)	68	+.513 (13.03)	-.099 (2.51)
8	+.171 (4.34)	+.495 (12.57)	69	+.399 (10.13)	-.099 (2.51)
9	+.057 (1.45)	+.495 (12.57)	70	+.285 (7.24)	-.099 (2.51)
10	-.057 (1.45)	+.495 (12.57)	71	+.171 (4.34)	-.099 (2.51)

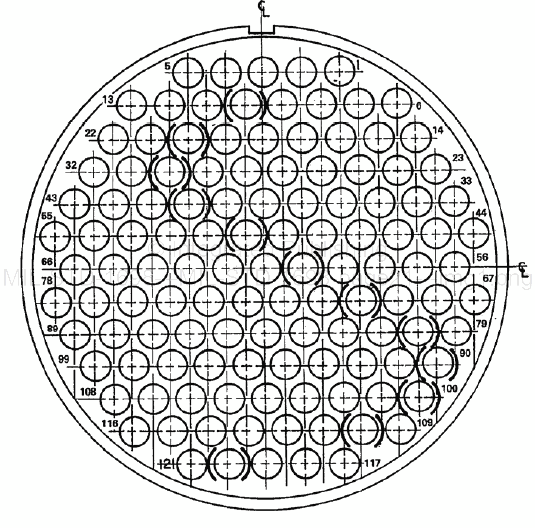

FIGURE 9. Insert arrangement shell size 29.

17
