INCH-POUND
MIL-DTL-83505B
25 September 2001
SUPERSEDING
MIL-S-83505A
30 November 1987
DETAIL SPECIFICATION
SOCKETS, (LEAD, ELECTRONIC COMPONENTS)
GENERAL SPECIFICATION FOR
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
1. SCOPE
1.1 Scope. This specification covers the general requirements for individual lead sockets for insertion through mounting boards or
panels.
1.2 Classification.
1.2.1 Terminal types. Lead sockets have terminals of the following types, as specified (see 3.1 and figure 1).
Type I
-
Solderless wrap.
Type II -
Printed circuit.
Type III -
Solder wire turrent.
Type IV -
Solder cup.
Type V -
Other (see 3.1).
Type VI -
Solderless spring contact (no terminal).
SOLDERLESS
SOLDER
SOLDER
PRINTED
SOLDERLESS
SPRING
W IRE
CUP
CIRCUIT
W RAP
CONTACT
TURRENT
(NO TERMINAL)
PLATED
THRU HOLE

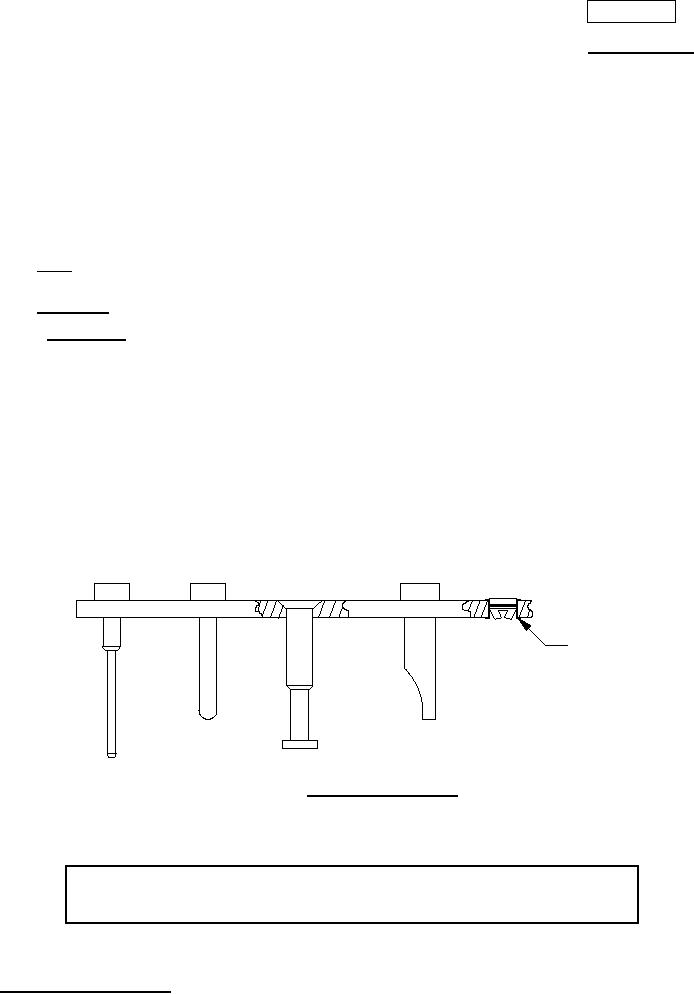

FIGURE 1. Terminal type configurations.
Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use
in improving this document should be addressed to: Commander, Defense Supply Center Columbus,
ATTN: VAI, 3990 East Broad Street, Columbus, Ohio 43216-5000, by using the Standardization Document
Improvement Proposal (DD Form 1426) appearing at the end of this document or by letter.
AMSC N/A
FSC 5935
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
