MIL-DTL-83505B
TEST GAGE PIN
mV
SET TO 100 mA
LEAD SOCKET
A

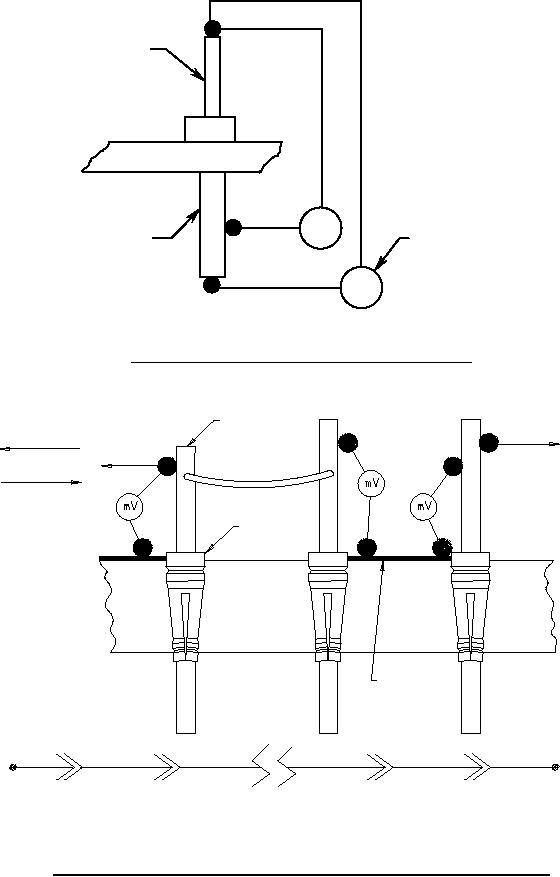

FIGURE 6. Low-signal level contact resistance type I through type V sockets.
TEST GAGE PIN
SOURCE
SOURCE
CURRENT FLOW
SOCKET
PWB TRACE
CIRCUIT WIRED IN SERIES
FIGURE 7. Low-signal level contact resistance, vibration and mechanical shock test setup type VI sockets.
