8 inch printed wiring boards, and for interconnections between printed wiring boards. The connectors are intended to provide a reliable connection between printed wiring and conventional wiring. The interconnector concept is intended to provide connection of printed wiring on one board to printed wiring on another board.

Pages 1 - - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28|||

MIL-DTL-21097G

4.6.5 Contact resistance (see 3.9). Connectors shall be tested in accordance with test procedure EIA-364-06. The

following details and exceptions shall apply:

a. Special conditions: The resistance shall be measured at 25�C �3�C, and the contacts shall be assembled as

in service. Resistance of contacts shall be determined by measuring the potential drop across the contact

and the mated printed wiring test board specified on figure 2.

(1) For Types A and AD: At a point .060 �.030 inch from the connector body, and at a point on the printed

wiring test board as shown on figure 2.

(2) Type CR (crimp-wirehole): At a point on the wire .060 �.030 inch from the connector body solder top at

the point where the contact terminal of the mating connector is attached to the printed wiring test board.

b. Test current: 5 amperes dc (ac � rms optional), unless otherwise specified (see 3.1).

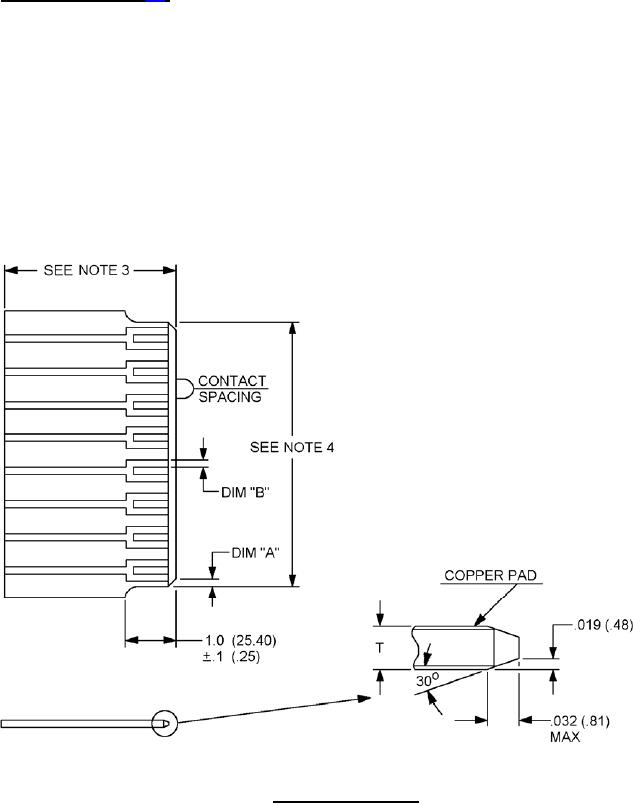

FIGURE 2. Printed wiring test board.
