MIL-DTL-83502E
SHORTING TEST
LEADS WIRED IN SERIES
PLUG
(WIRED WITH TWO
TERMINALS)
ATTACH VOLTMETER
.100M= (2.54) LEAD
LEADS AS CLOSE AS
LENGTH REF
POSSIBLE
mV
ATTACH LEADS IN THIS
AREA AS CLOSE TO BODY
AS POSSIBLE
A
DC POWER
SUPPLY
NOTES:
1. Dimensions are in inches. Metric equivalents are in parentheses.
2. Metric equivalents are given for information only.
3. The measured resistance includes a portion of the terminal and test socket leads as well as the
voltmeter test leads. These resistances's are to be subtracted from the total resistance to obtain the
contact resistance.
4. A shorting wire may be soldered between leads in lieu of use of a special shorting plug.

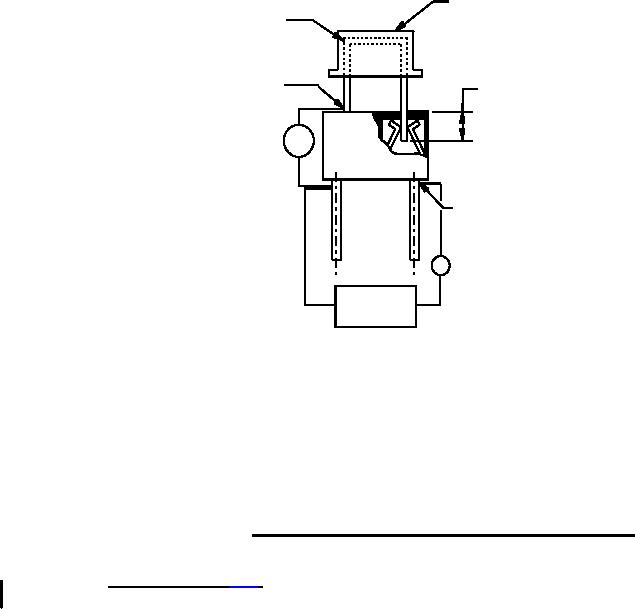

FIGURE 4. Contact resistance (low-level and rated current) test setup.
4.8.9 Capacitance (see 3.12). The socket shall be tested in accordance with test procedure
EIA-364-30. The following details shall apply:
a. Test frequency - 1 kHz.
b. Test voltage: The alternating-current (ac) voltage actually impressed across the specimen shall
be as low as possible.
c.
Polarization - Not applicable.
d. Unmounted.
e. Adjacent pins.
f.
Seven readings.
15
