MIL-STD-1669-SUP Insert Arrangements for MIL-DTL-26482 Environment Resisting, Circular, Electrical ConnectorsThis standard covers insert arrangements for use with MIL-DTL-26482 environment resisting, circular, electrical connectors.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65


MIL-STD-1669A



Contacts

Contact position

Contact location

x-axis

(mm)

y-axis

(mm)

A

+.059 (1.50)

.000 (0.00)

B

-.059 (1.50)

.000 (0.00)


Shell size

Arrangement number

Number of contacts

Size contacts

Service rating

Contact location

Supersedes document

8

2

2

20

I

All

MS33708-2


NOTE:  Inactive for new design after 11 August 1967

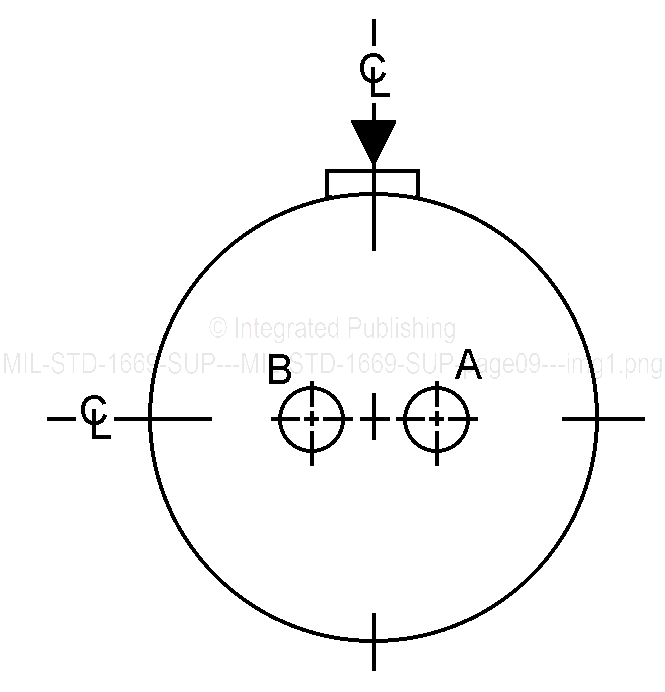

FIGURE 2.  Shell size 8.


6
