MIL-STD-1669A
Contacts |
||
Contact position |
Contact location |
|
X-axis (mm) |
Y-axis (mm) |
|
A |
+.118 (3.00) |
+.322 (8.18) |
B |
+.271 (6.88) |
+.211 (5.36) |
C |
+.341 (8.66) |
+.036 (0.91) |
D |
+.308 (7.82) |
-.150 (3.81) |
E |
+.182 (4.62) |
-.290 (7.37) |
F |
.000 (.000) |
-.343 (8.71) |
G |
-.182 (4.62) |
-.290 (7.37) |
H |
-.308 (7.82) |
-.150 (3.81) |
J |
-.341 (8.66) |
+.036 (0.91) |
K |
-.271 (6.88) |
+.211 (5.36) |
L |
-.118 (3.00) |
+.322 (8.18) |
Shell size |
Arrangement Number |
Number of contacts |
Size contacts |
Service rating |
Contact location |
Supersedes document |
20 |
16 |
16 |
16 |
II |
All |
MS33714-16 |

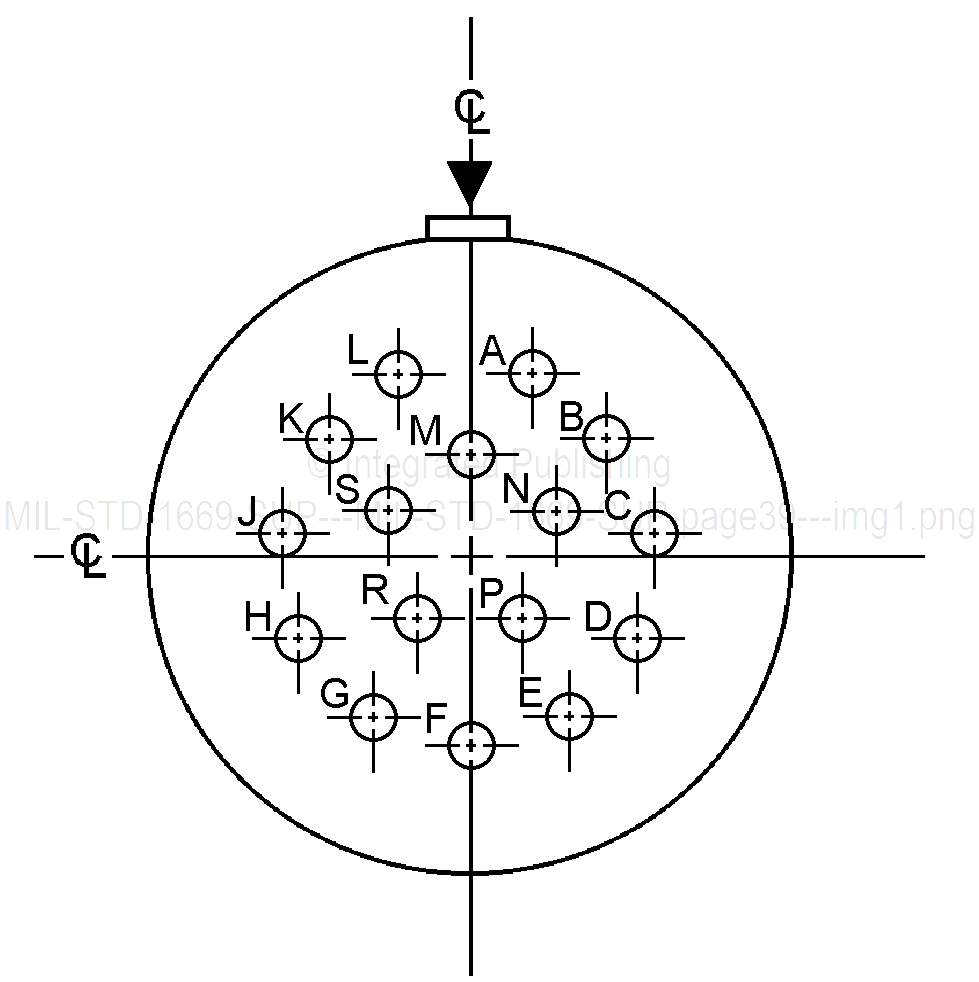

FIGURE 8. Shell size 20.
